SLIPSTICK II
High Powered Rocket
Level 2 Certification

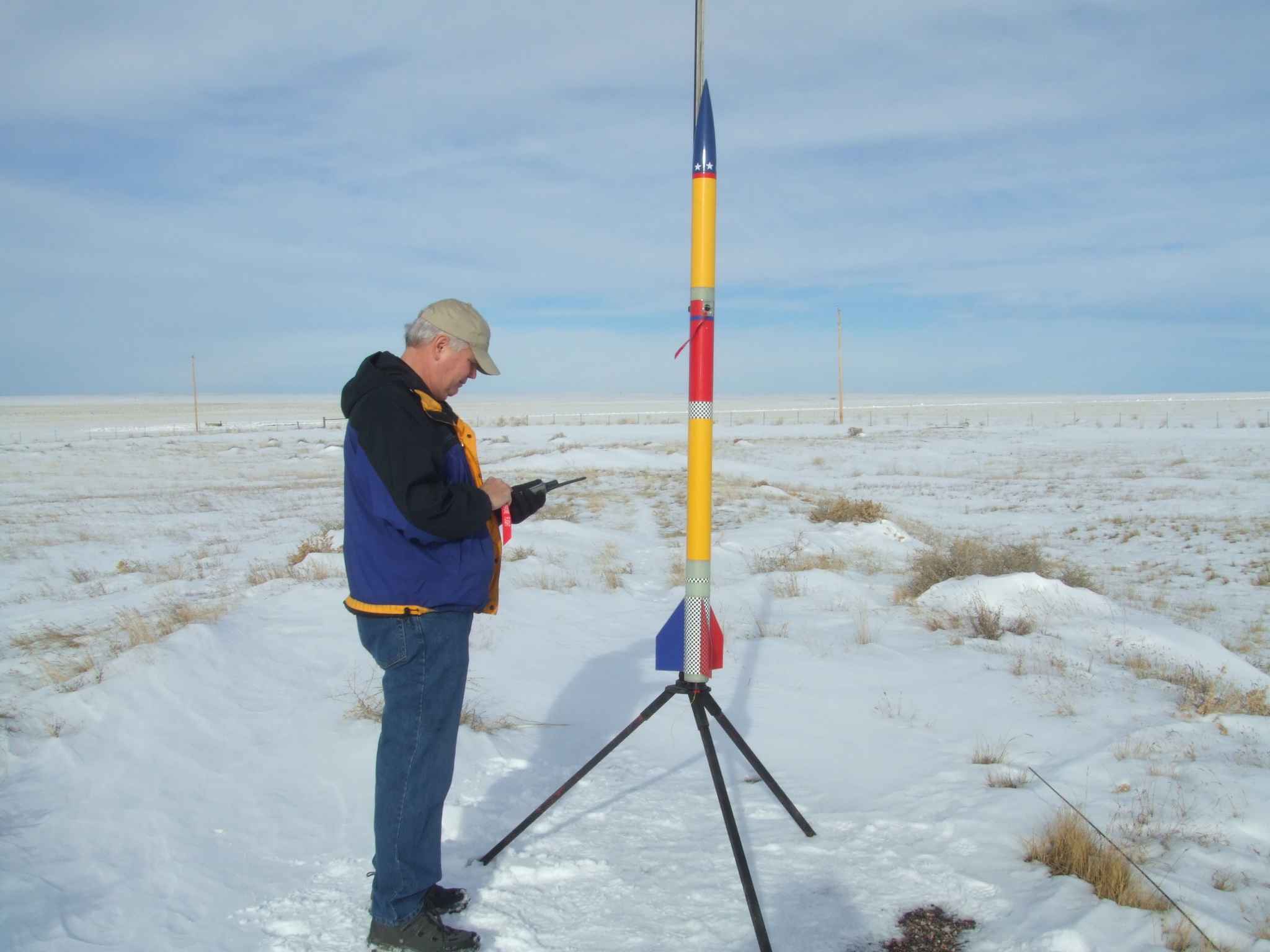

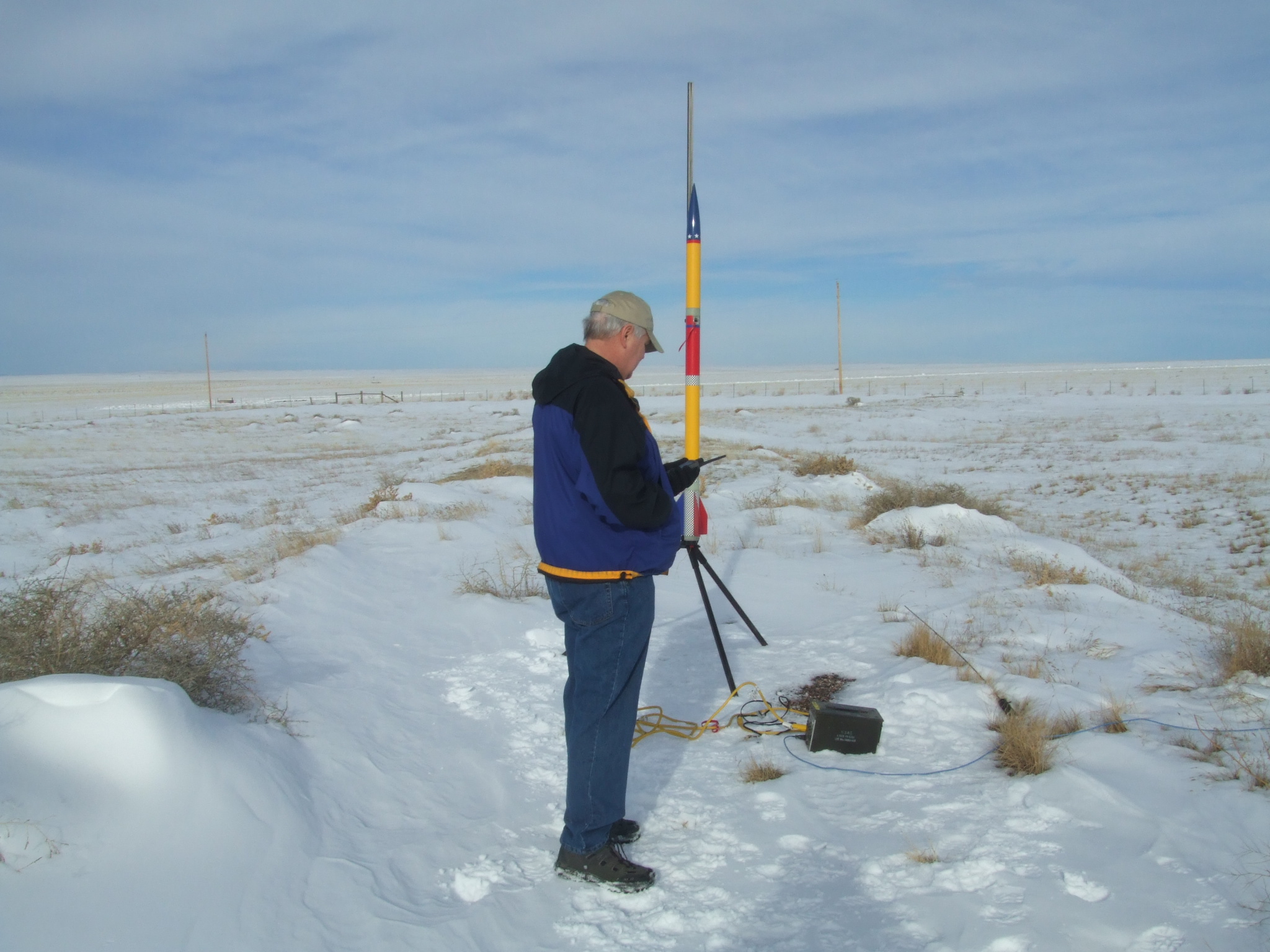

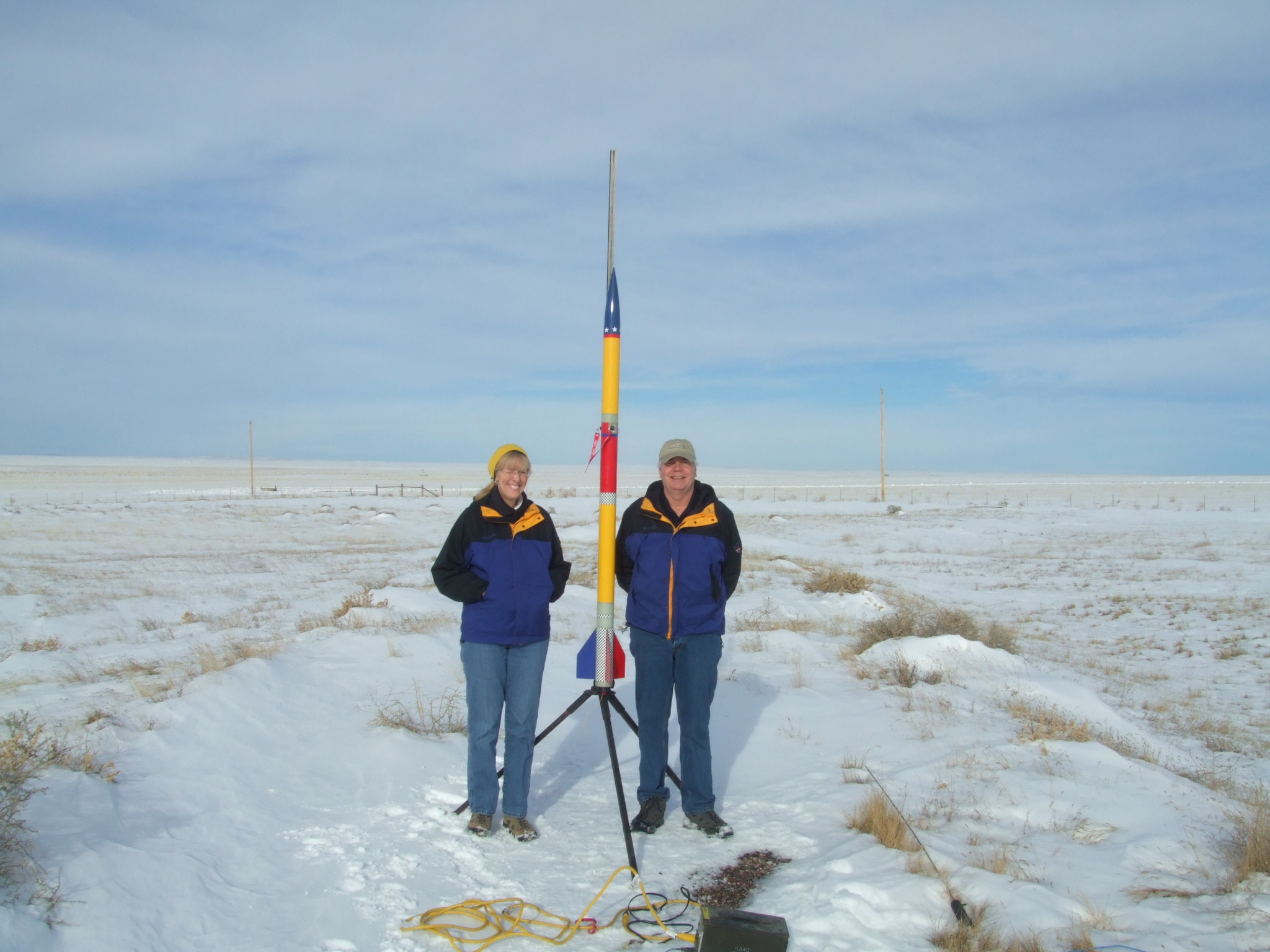

January 5, 2008 - L2 Certification Flight - J motor
|
Slipstick II is based on a Performance Rocketry 3 inch diameter G3 kit with a 54mm motor mount
with a 38mm Aerpack adapter.

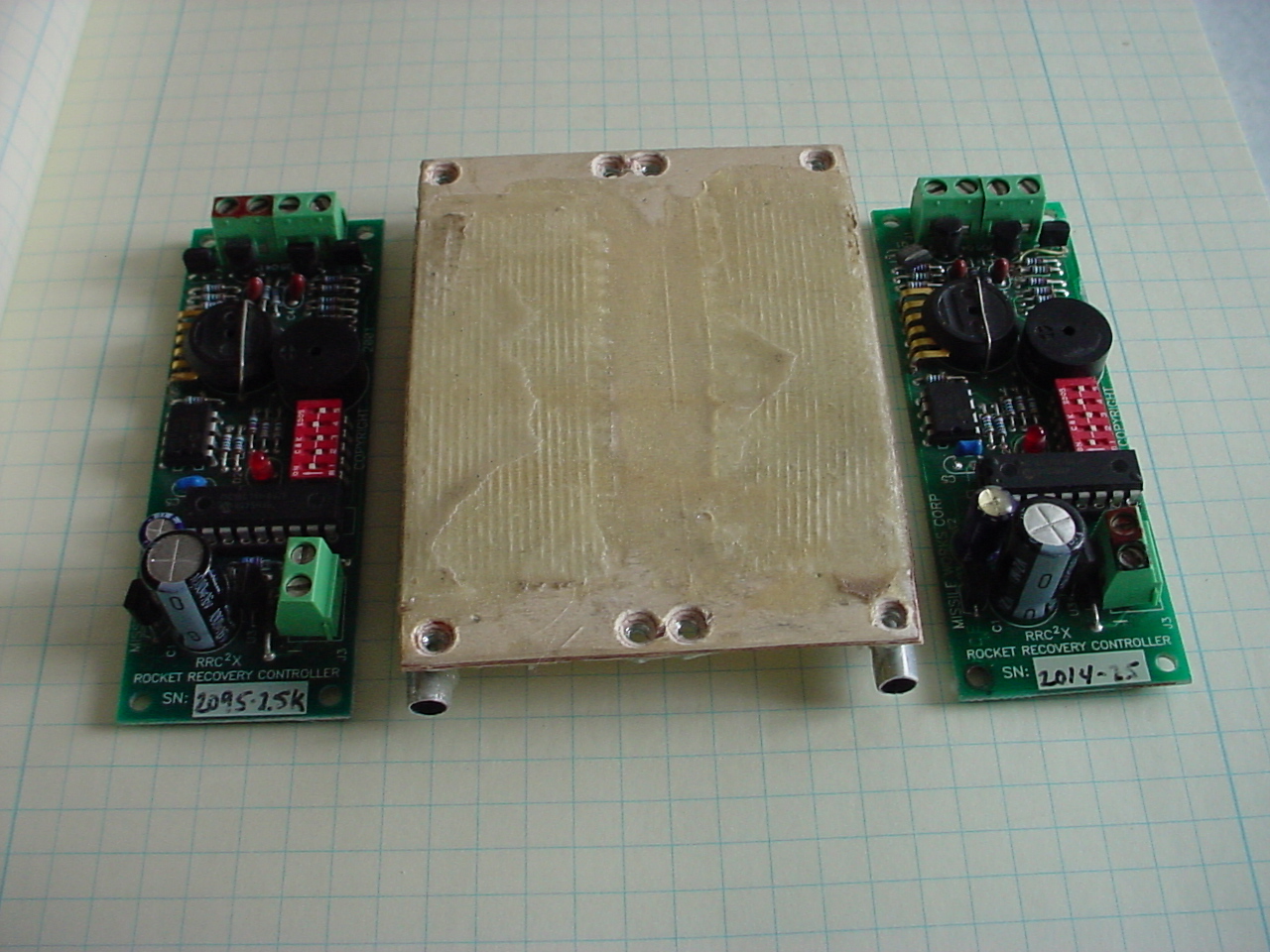

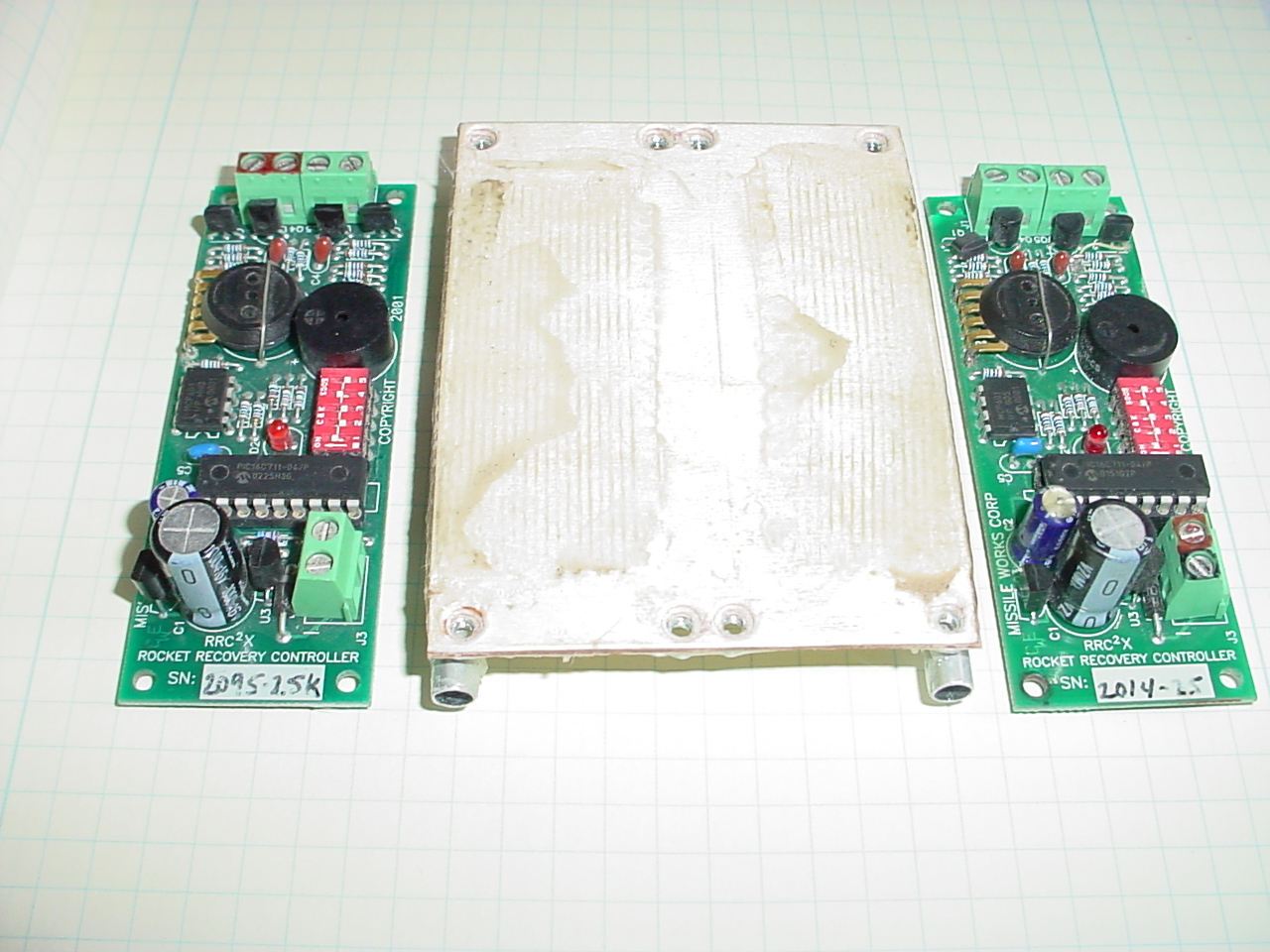

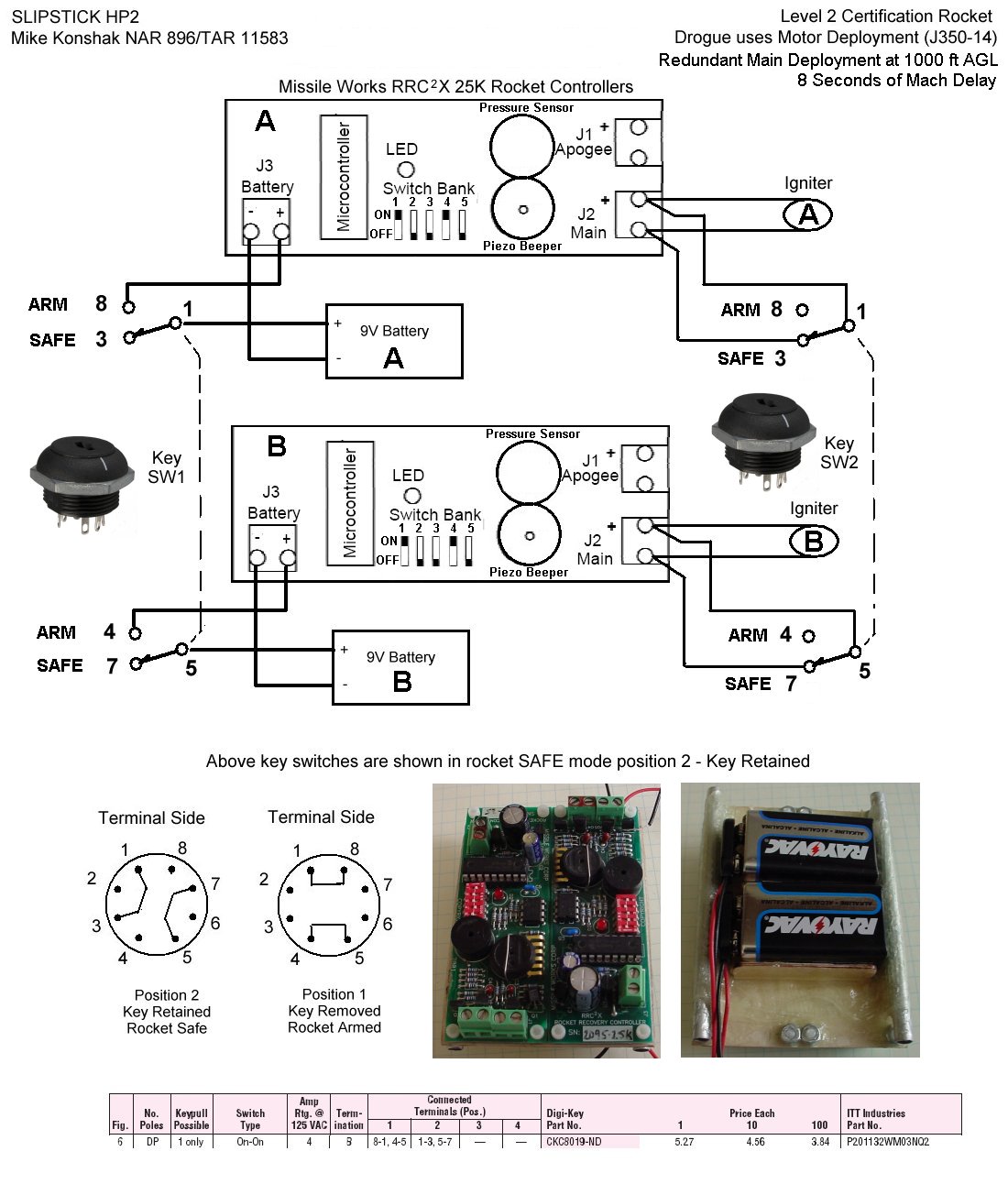

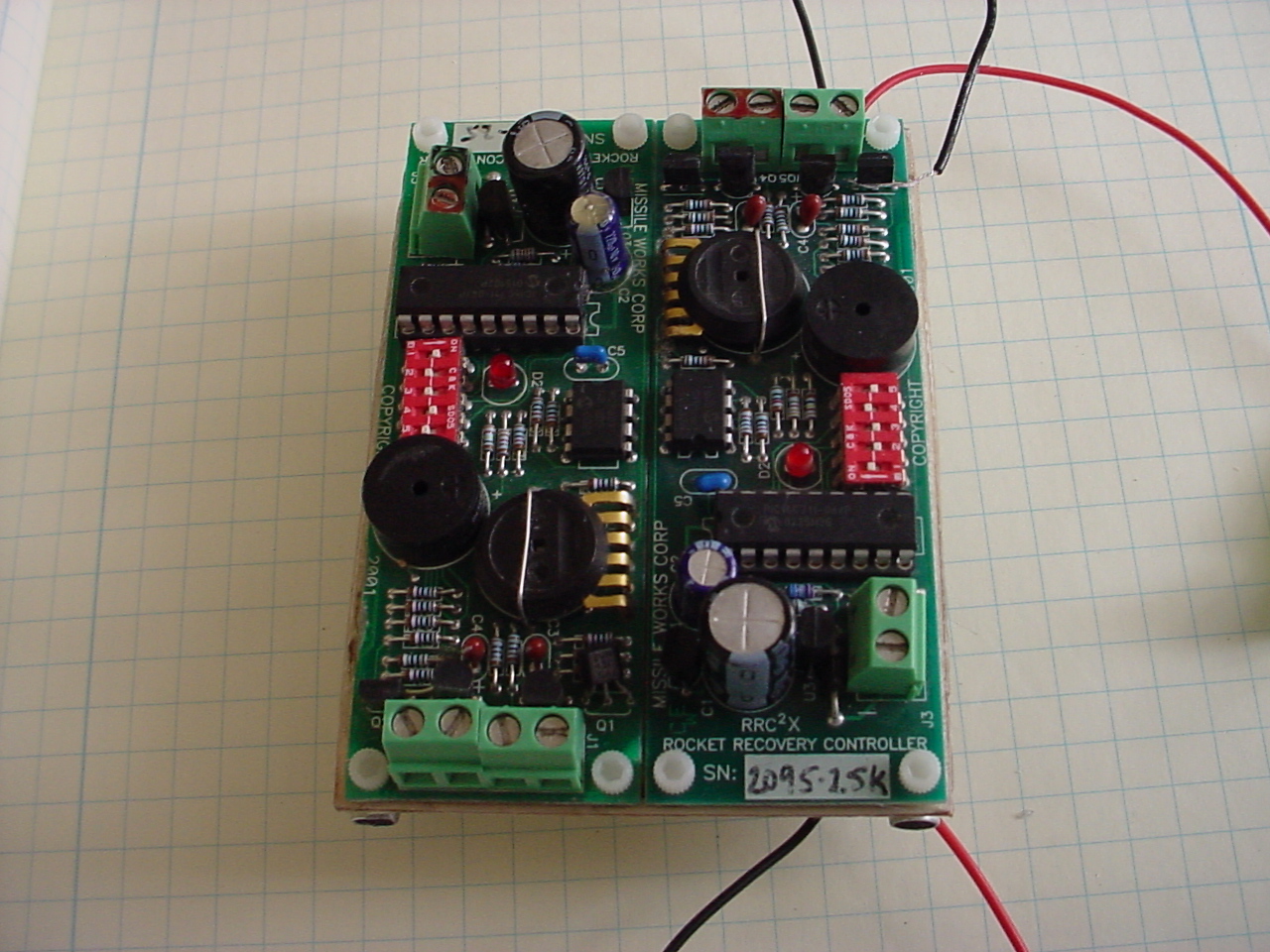

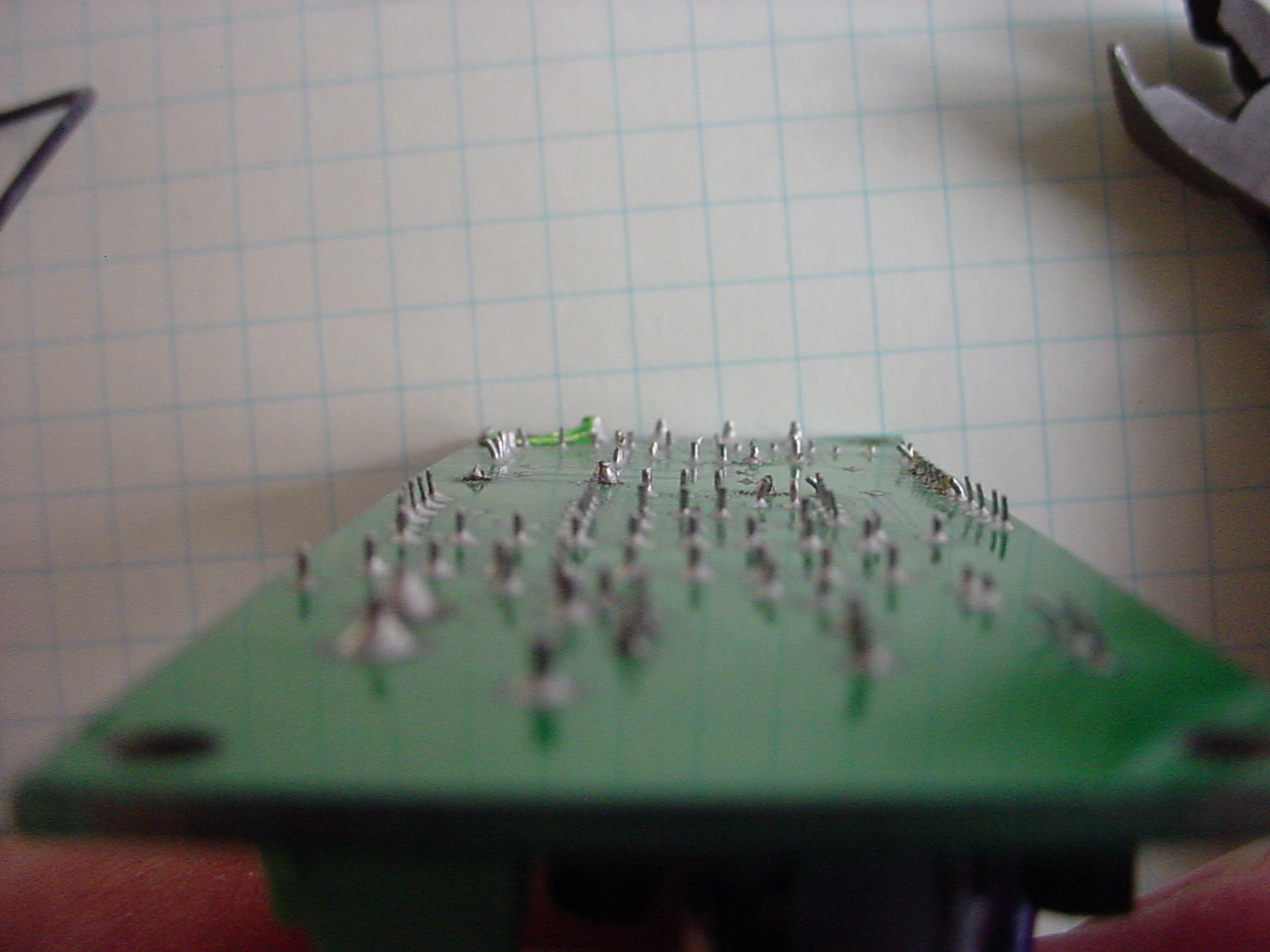

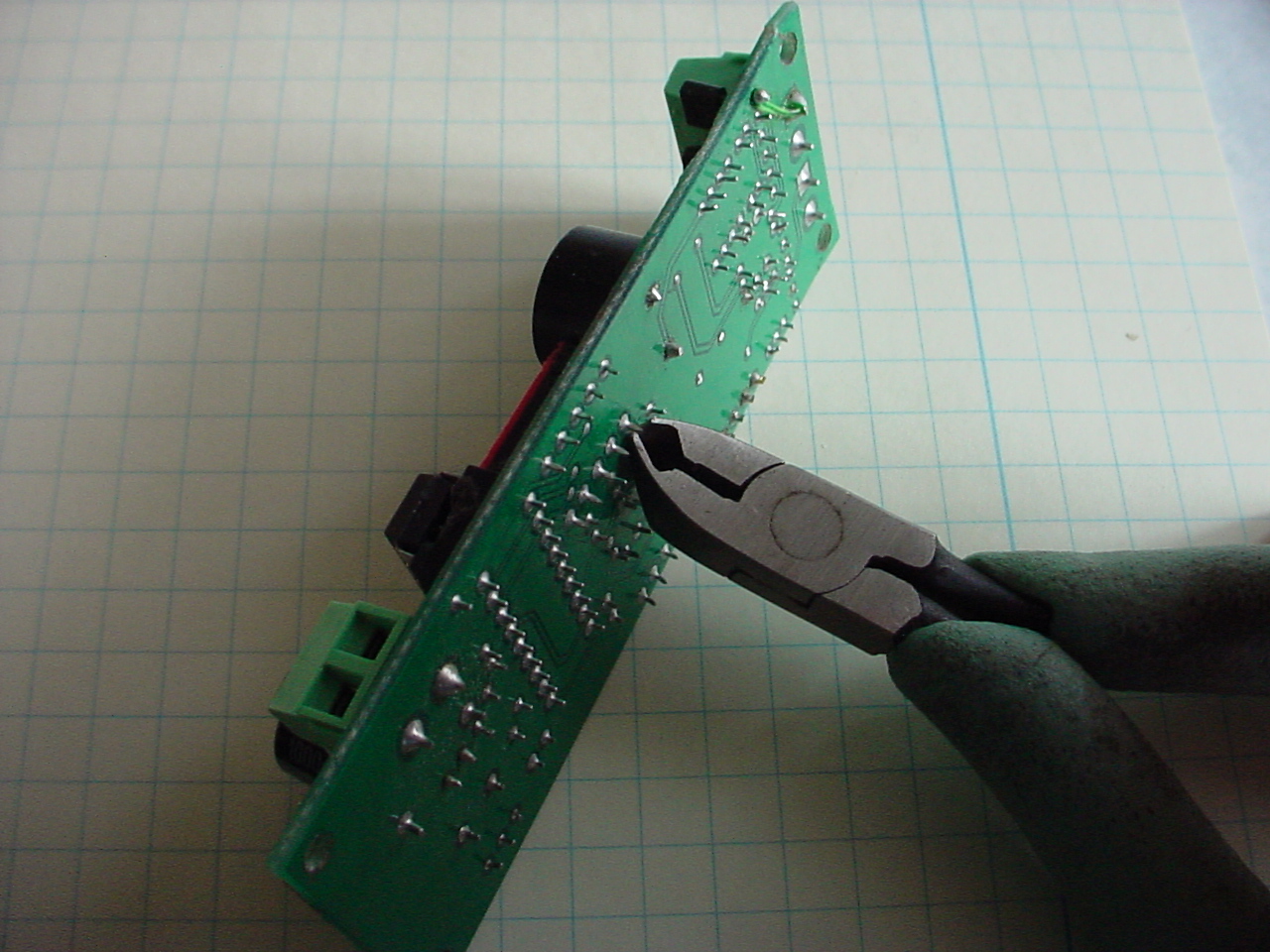

My modifications of this kit was to use dual deployment using redundant Missileworks RRC2X altimeters.

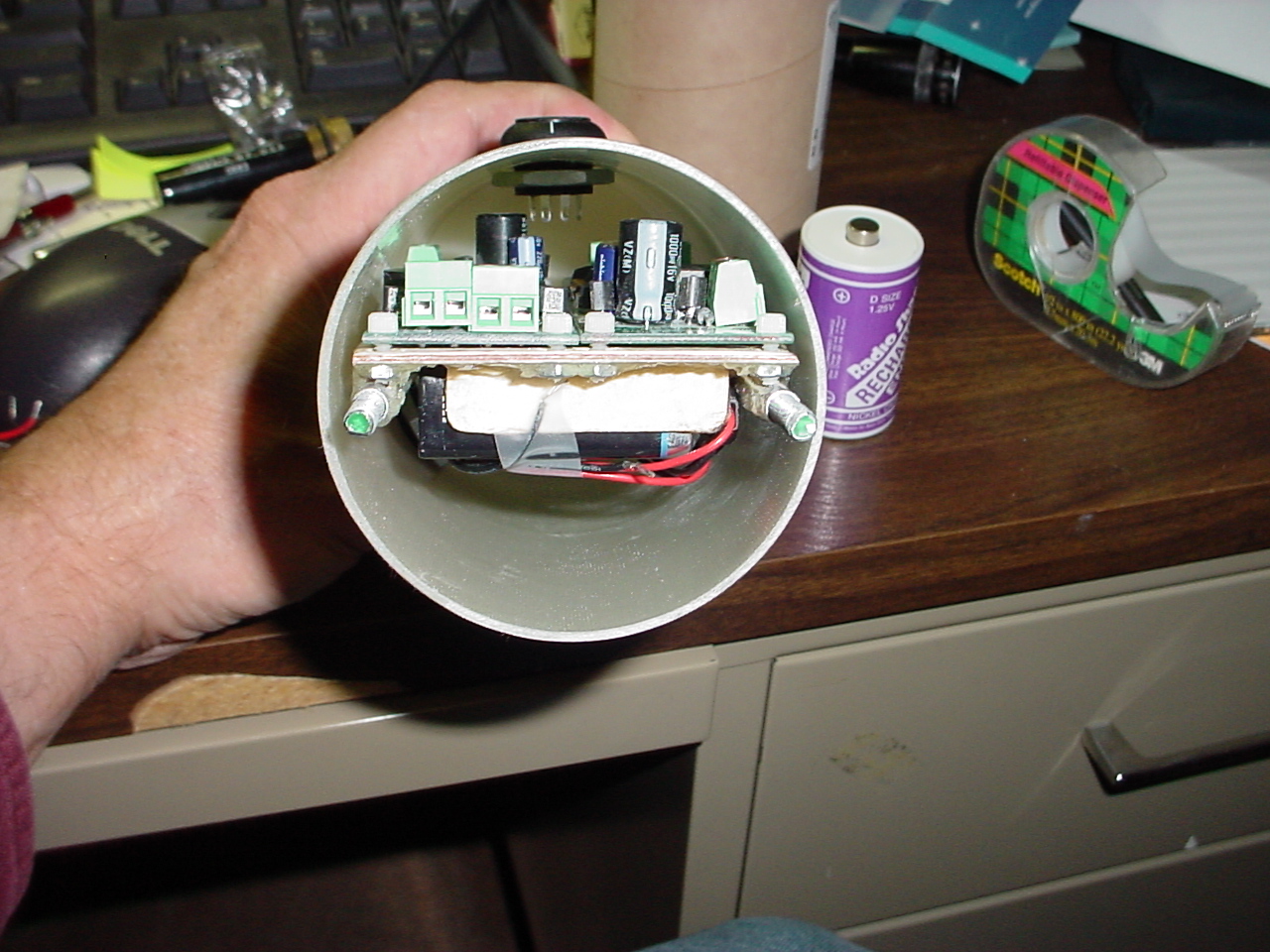

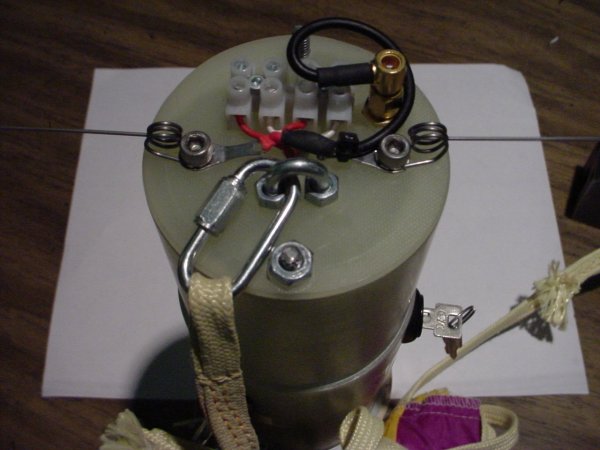

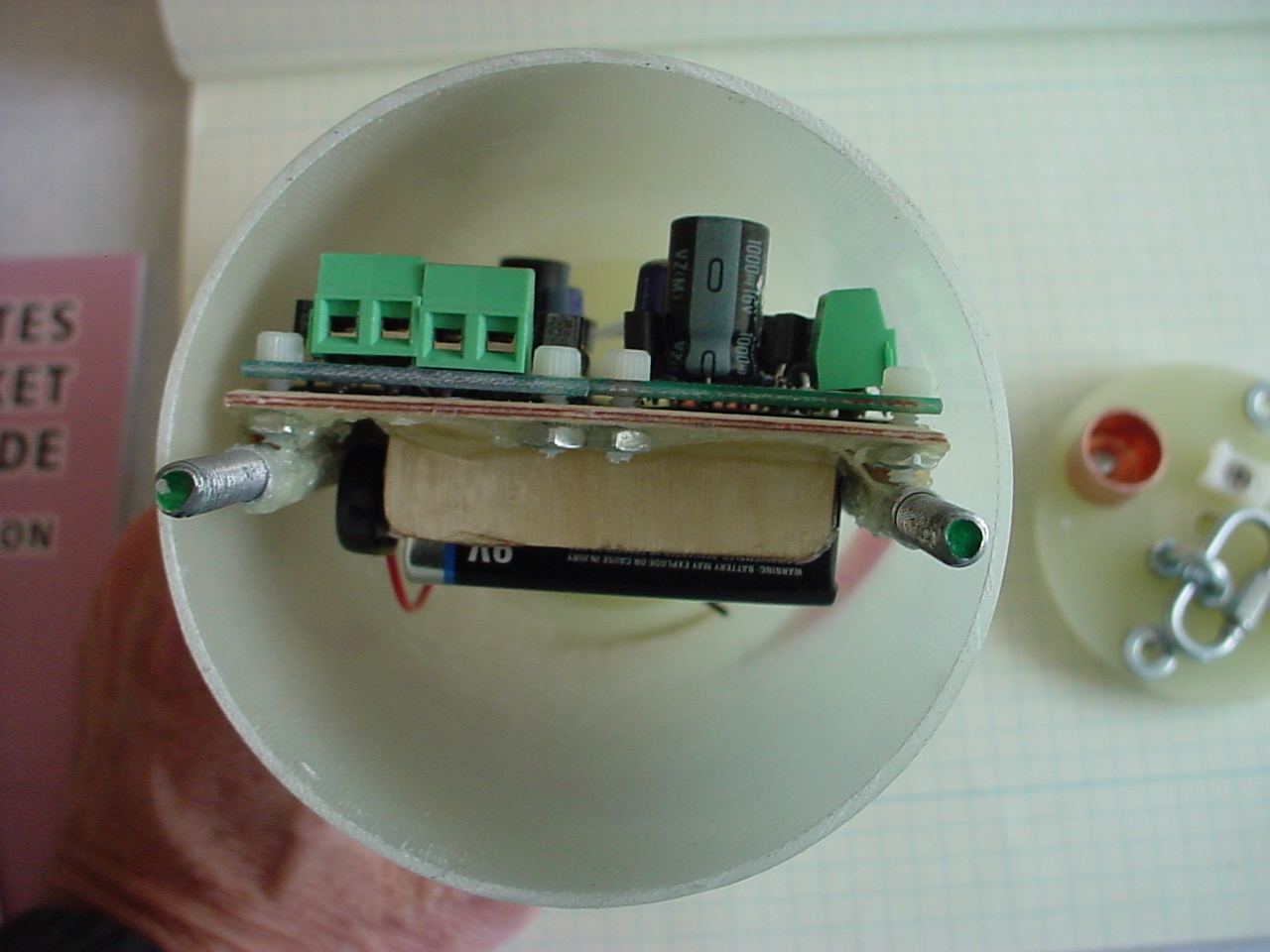

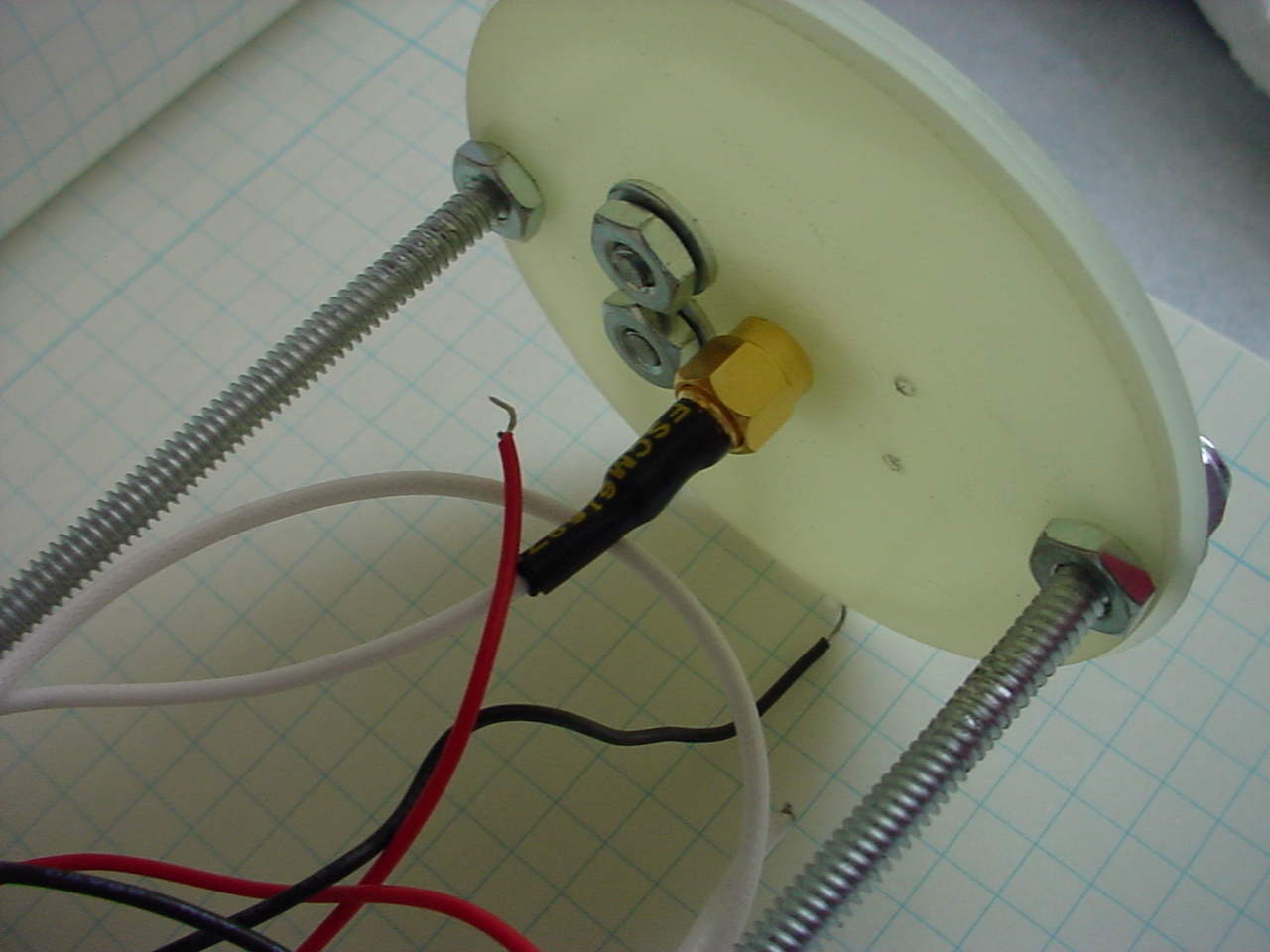

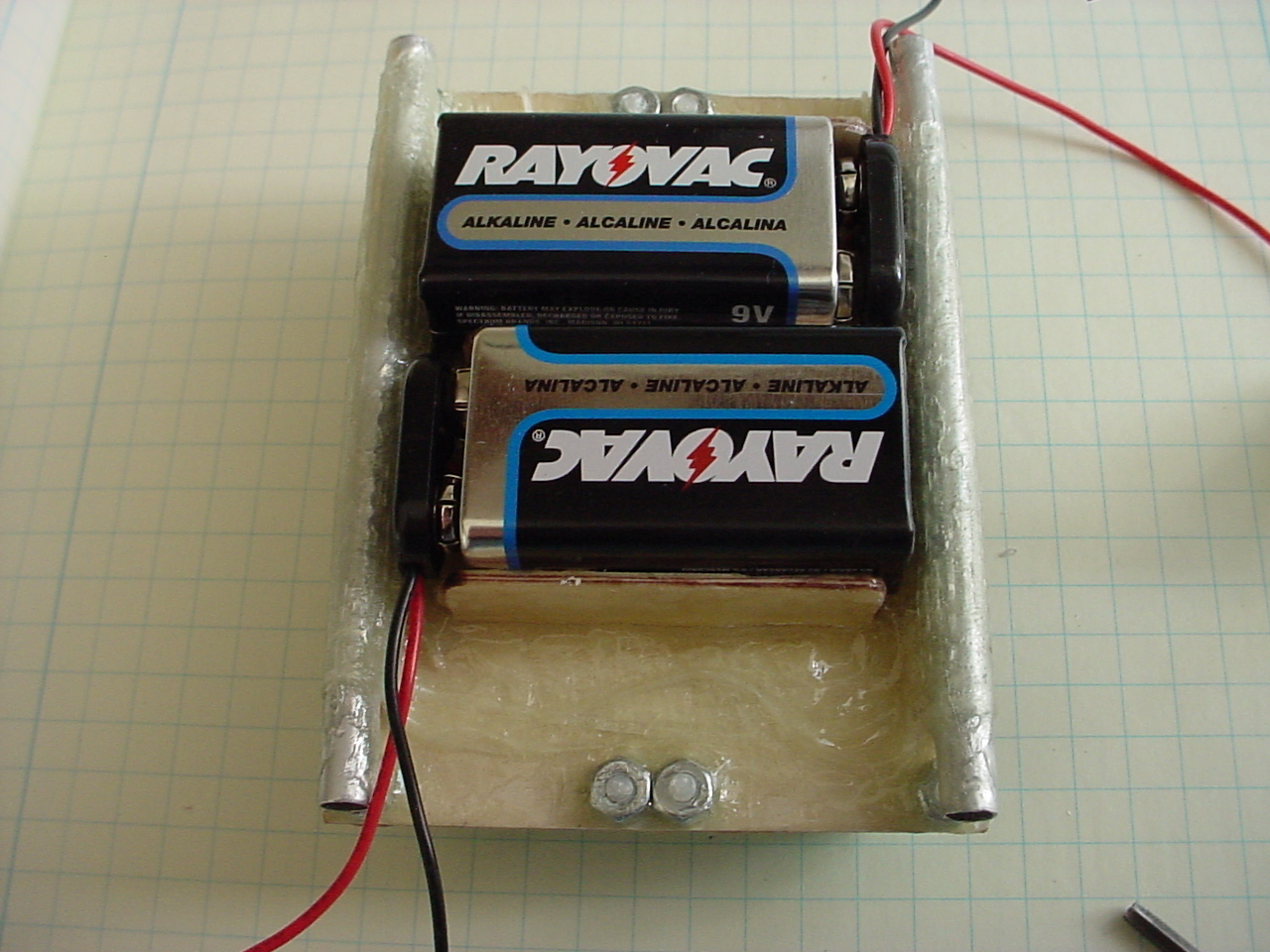

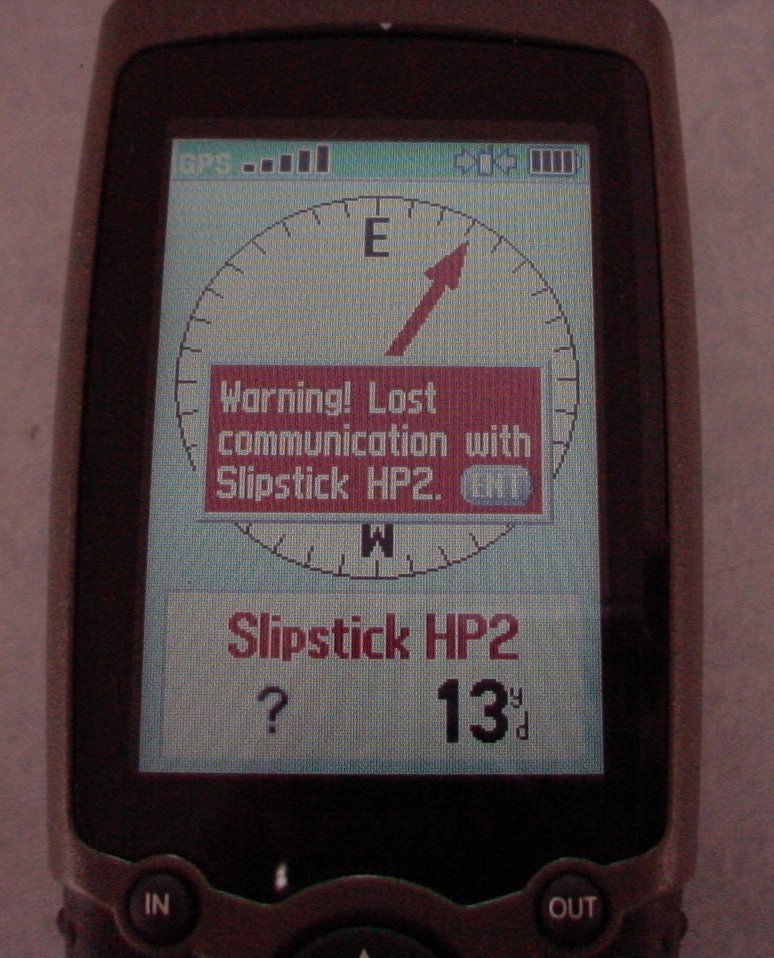

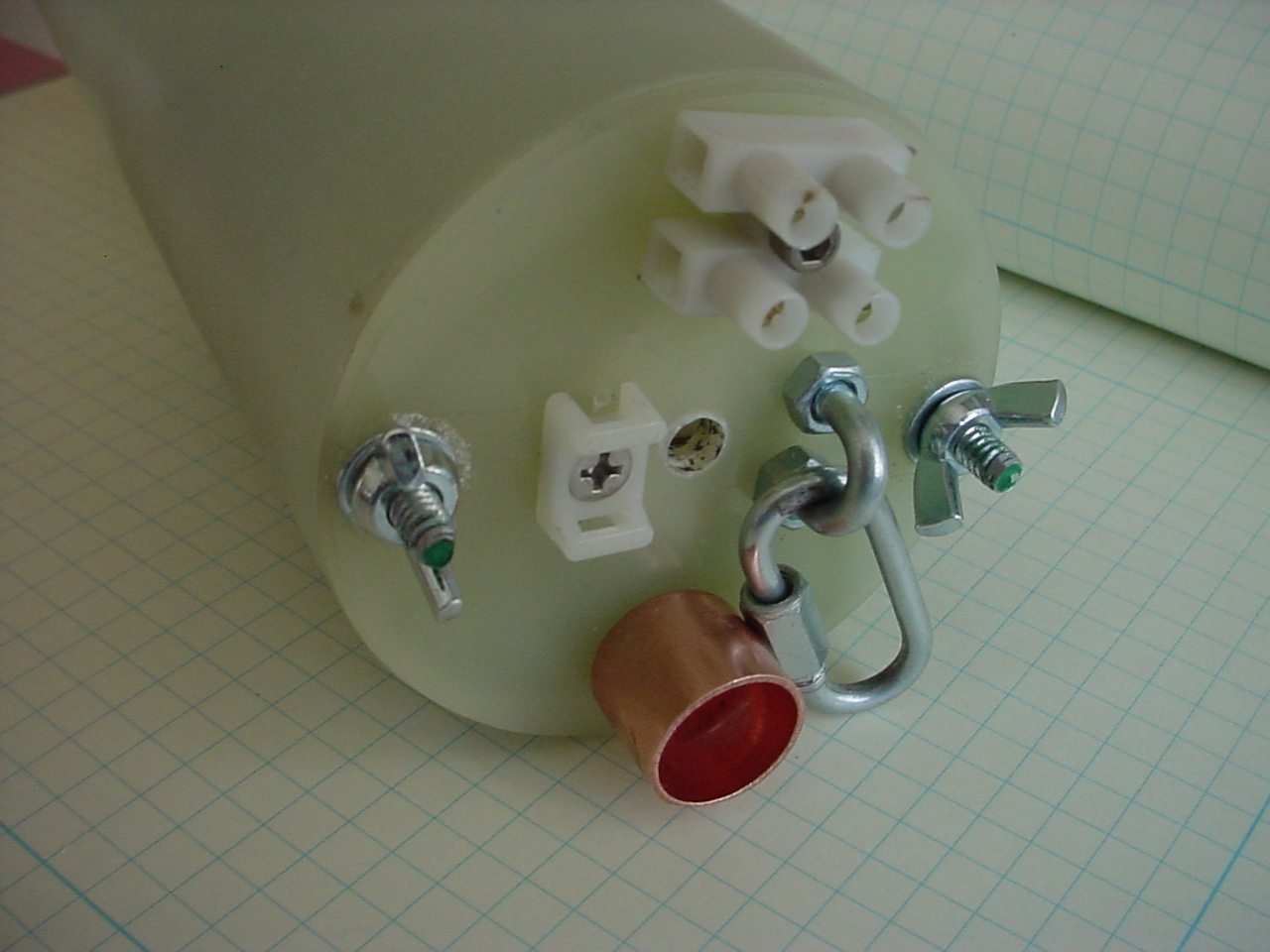

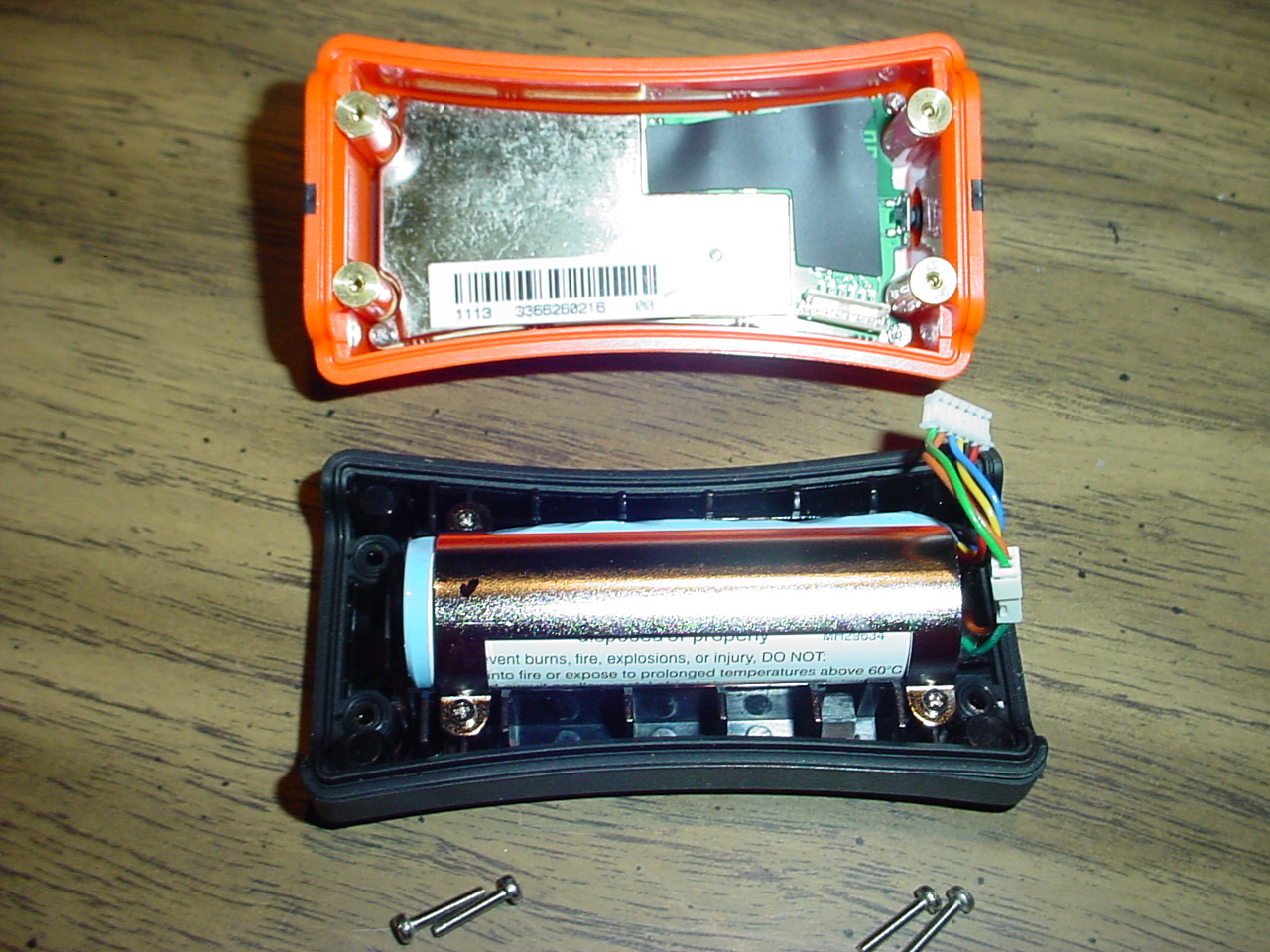

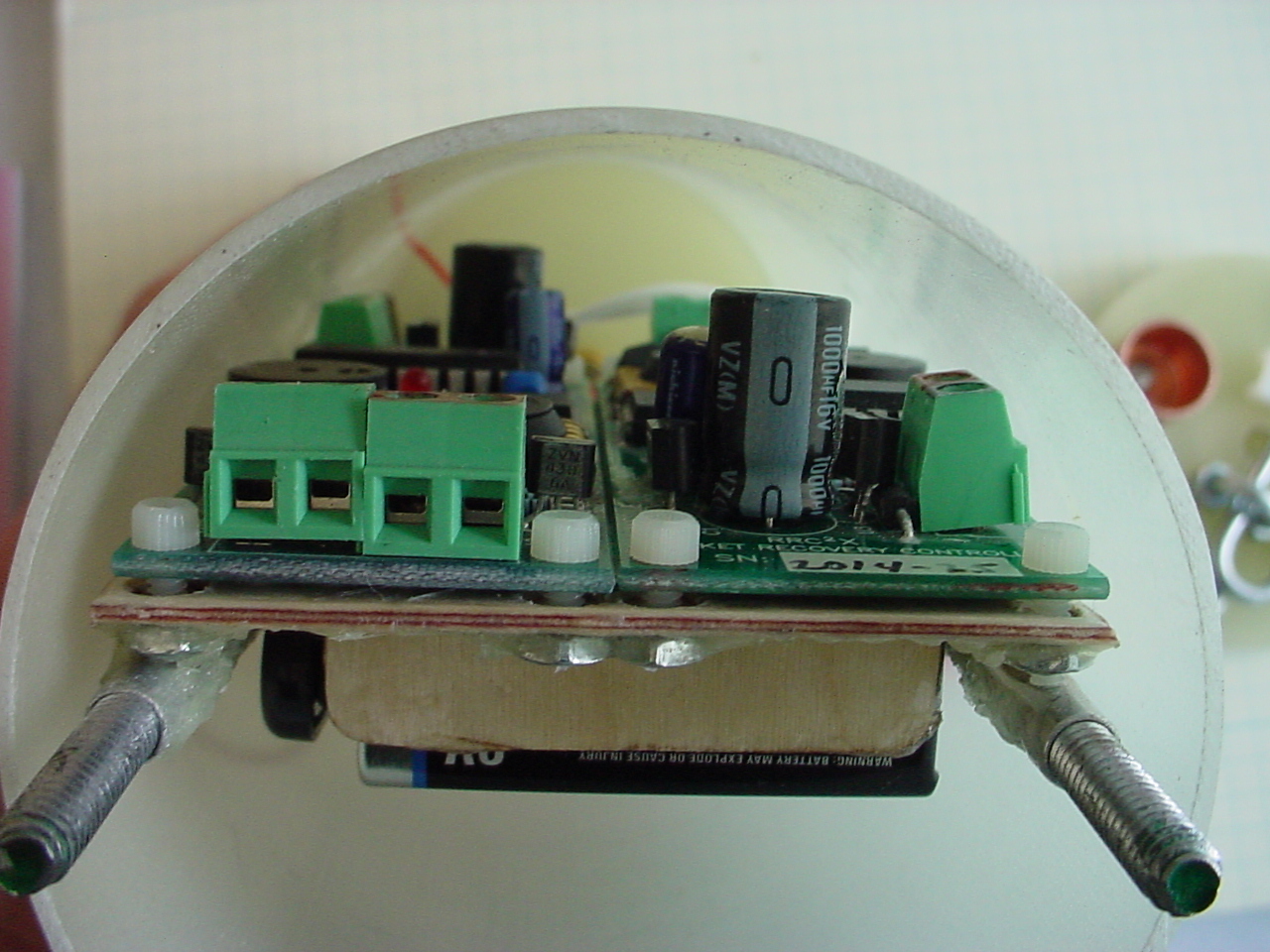

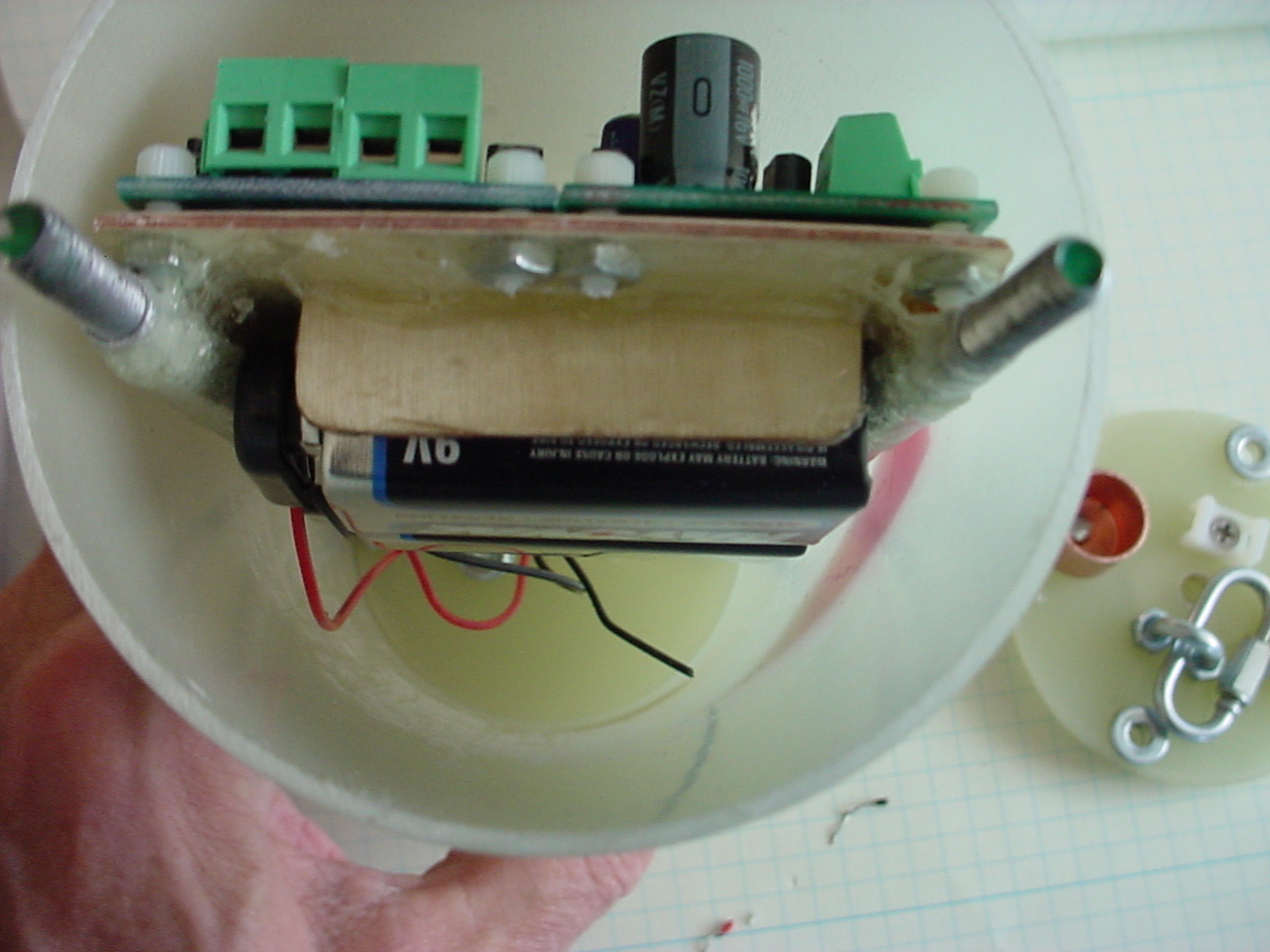

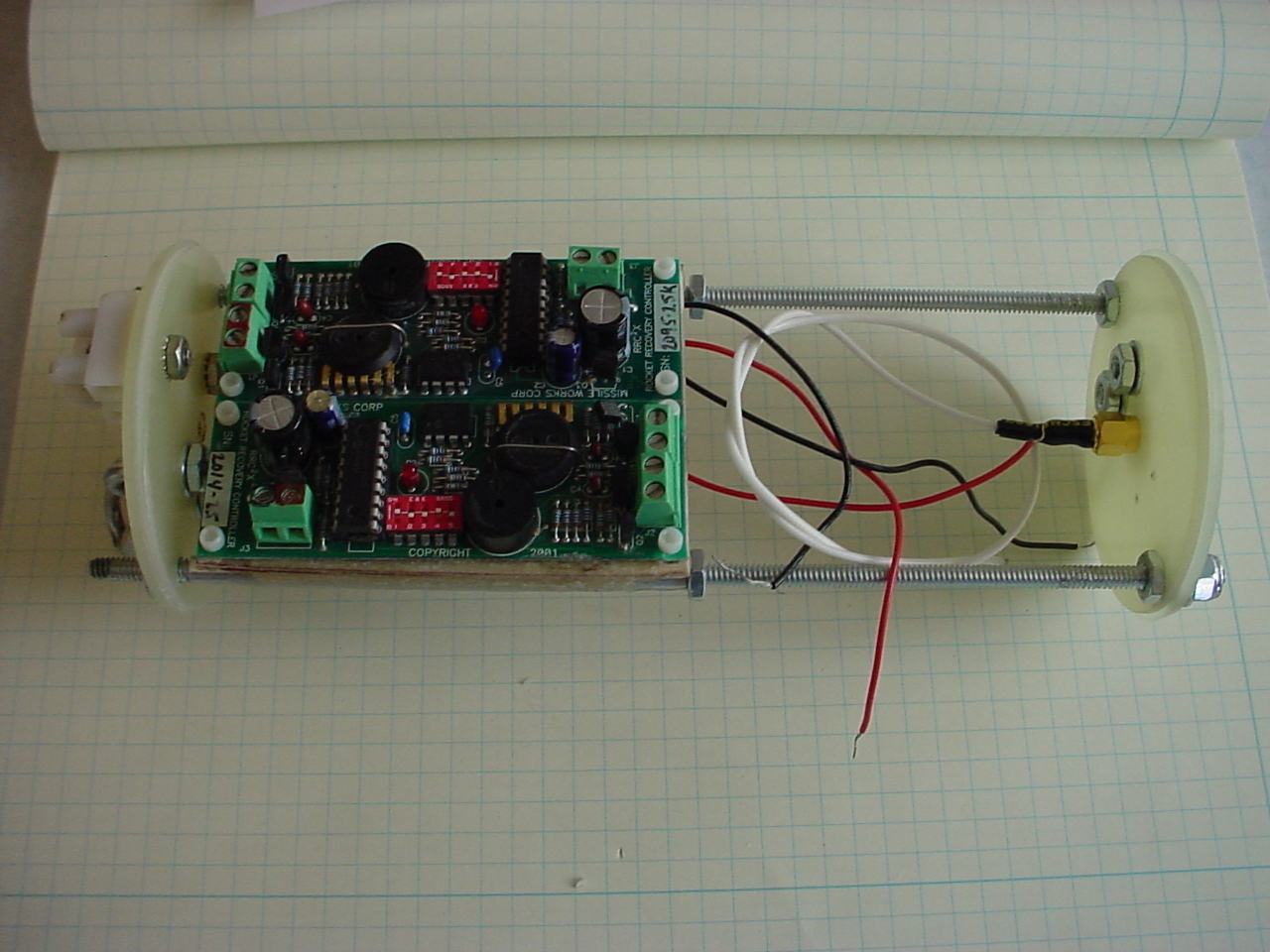

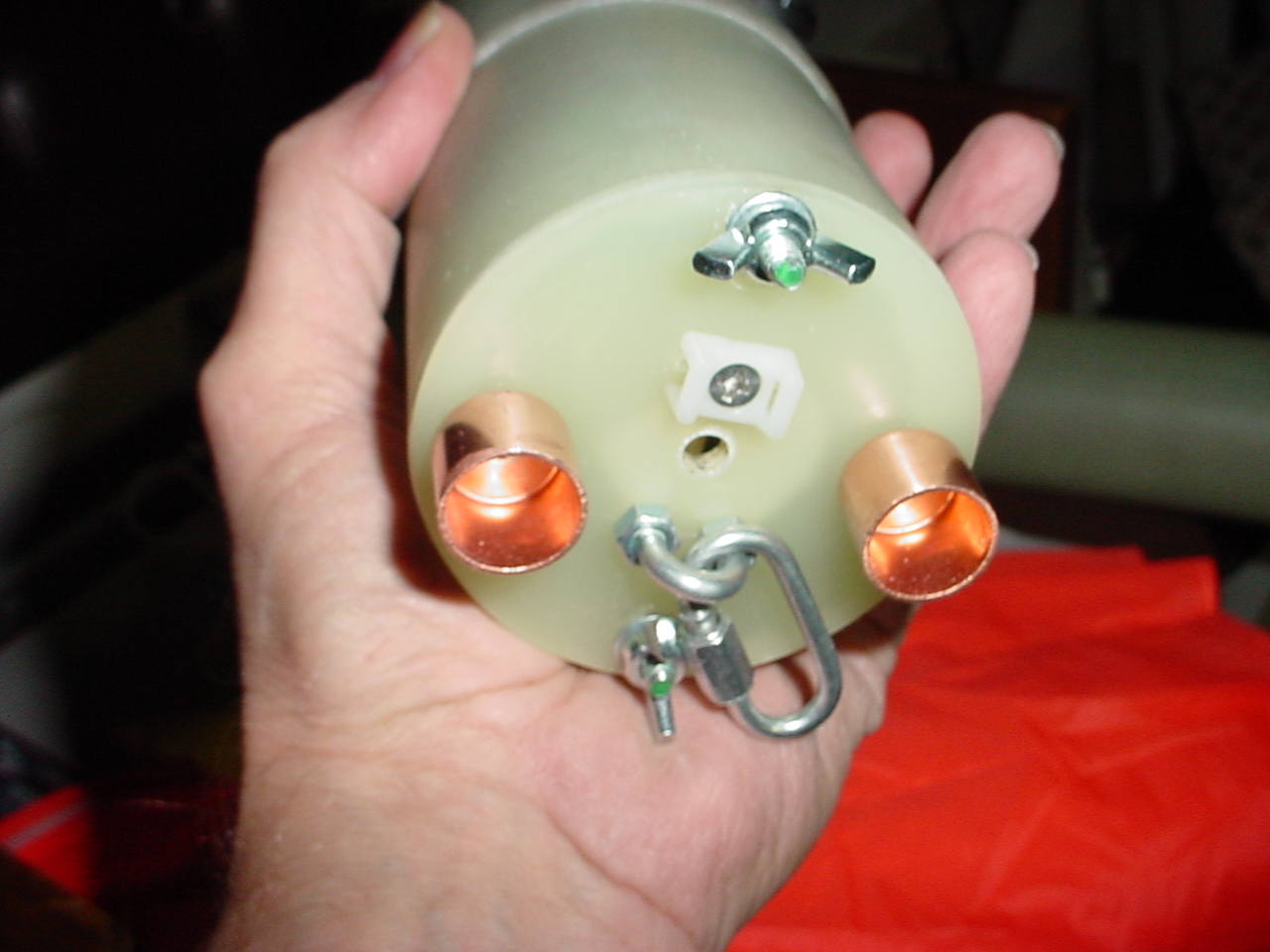

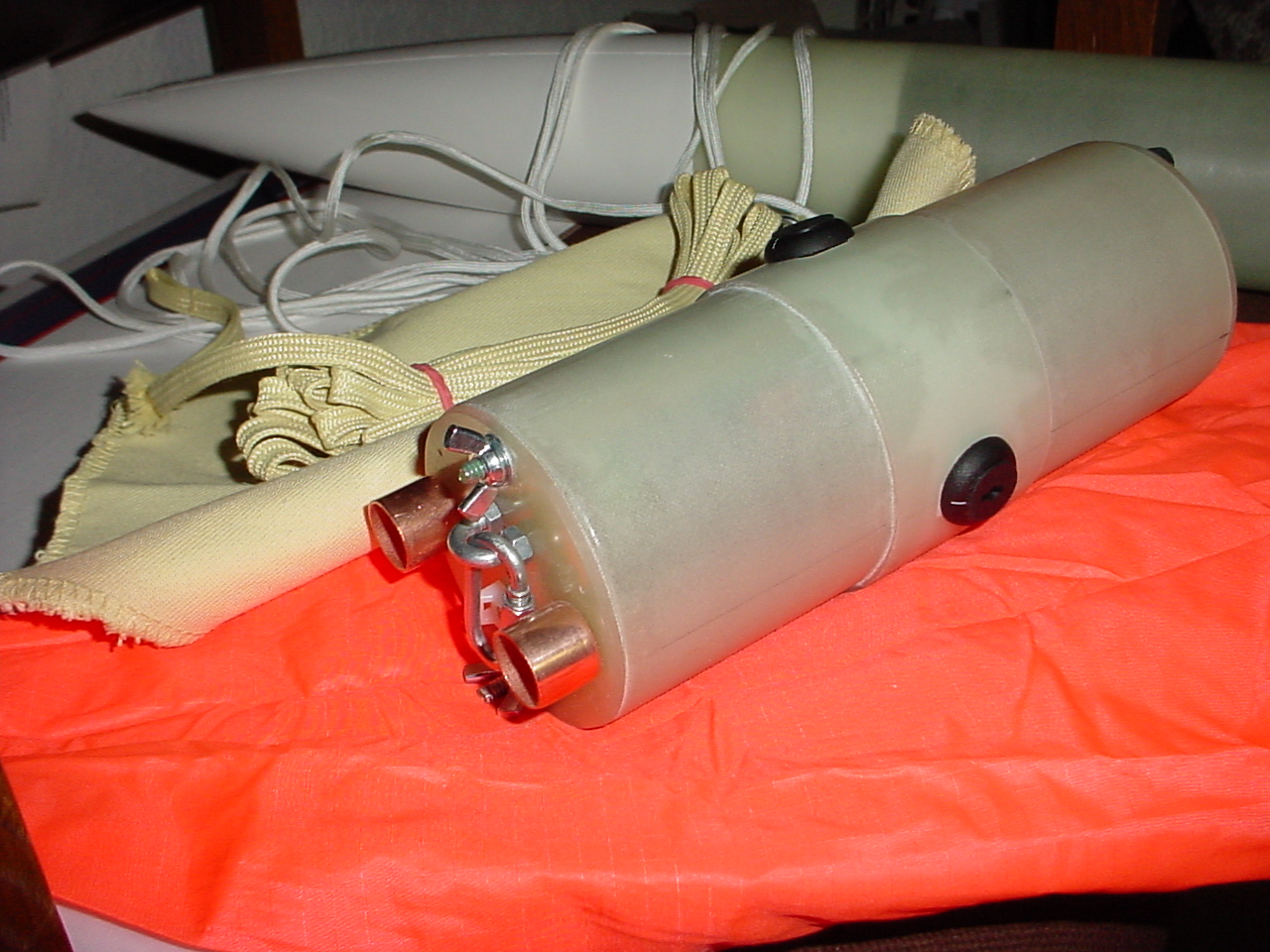

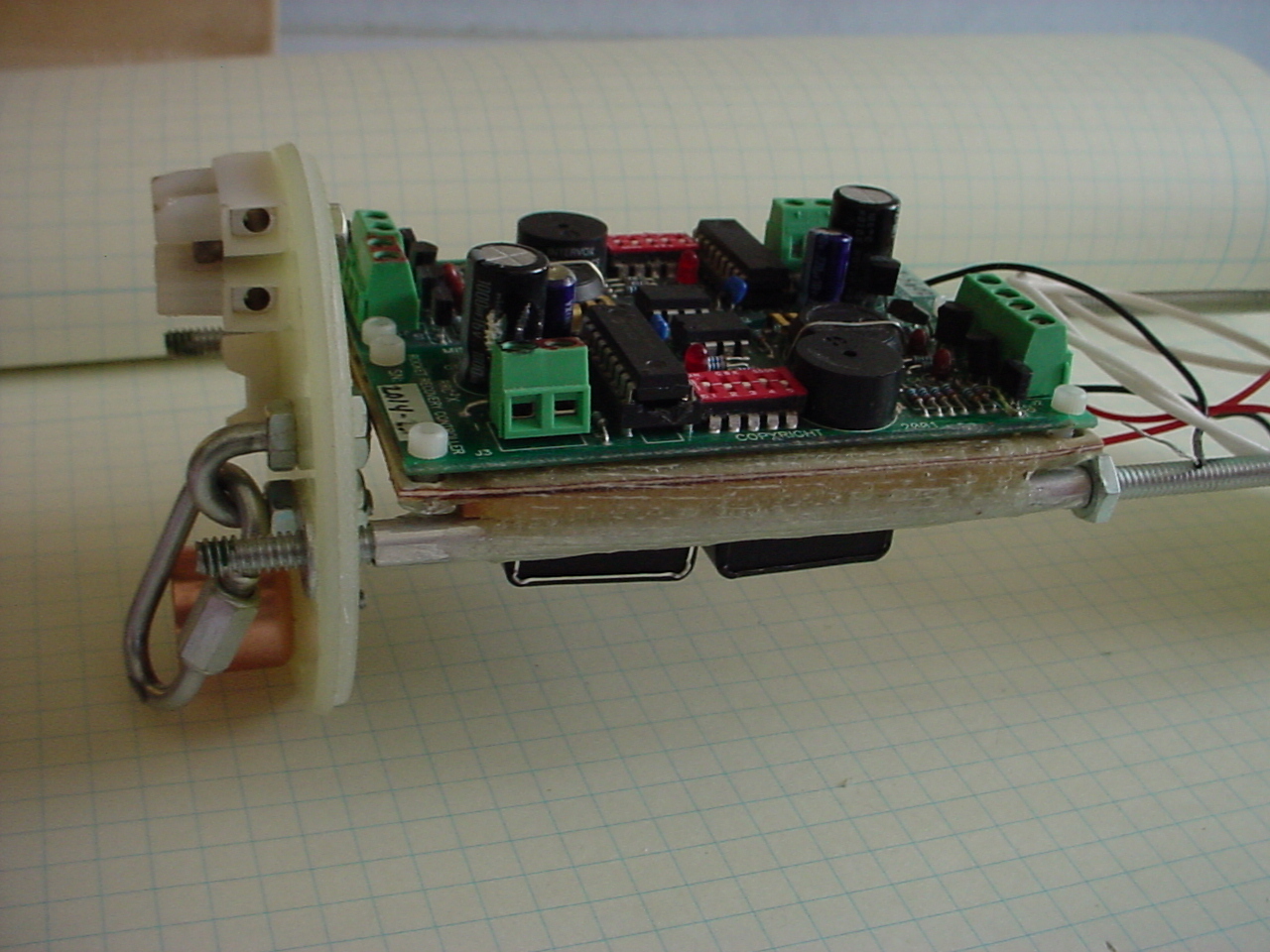

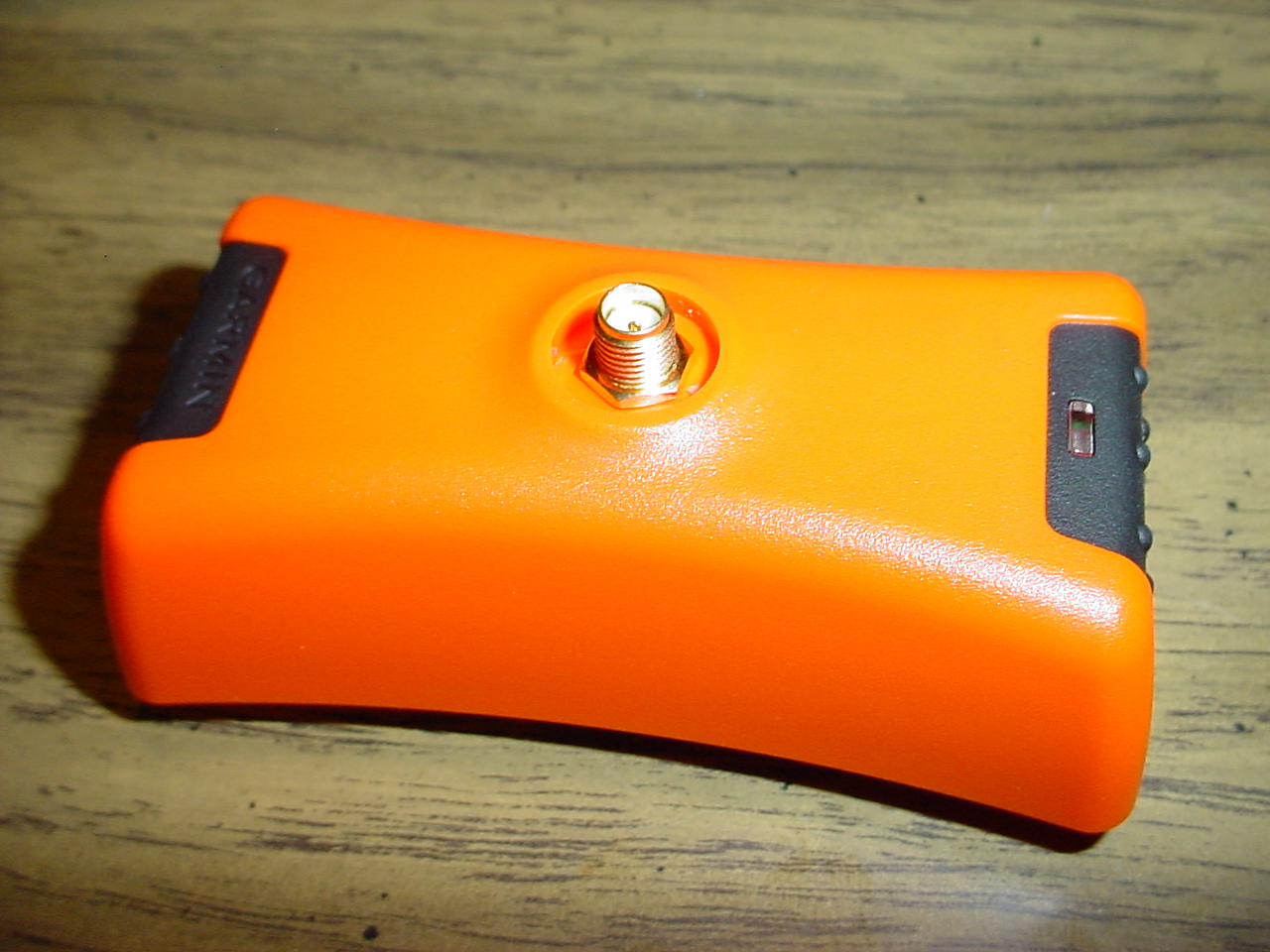

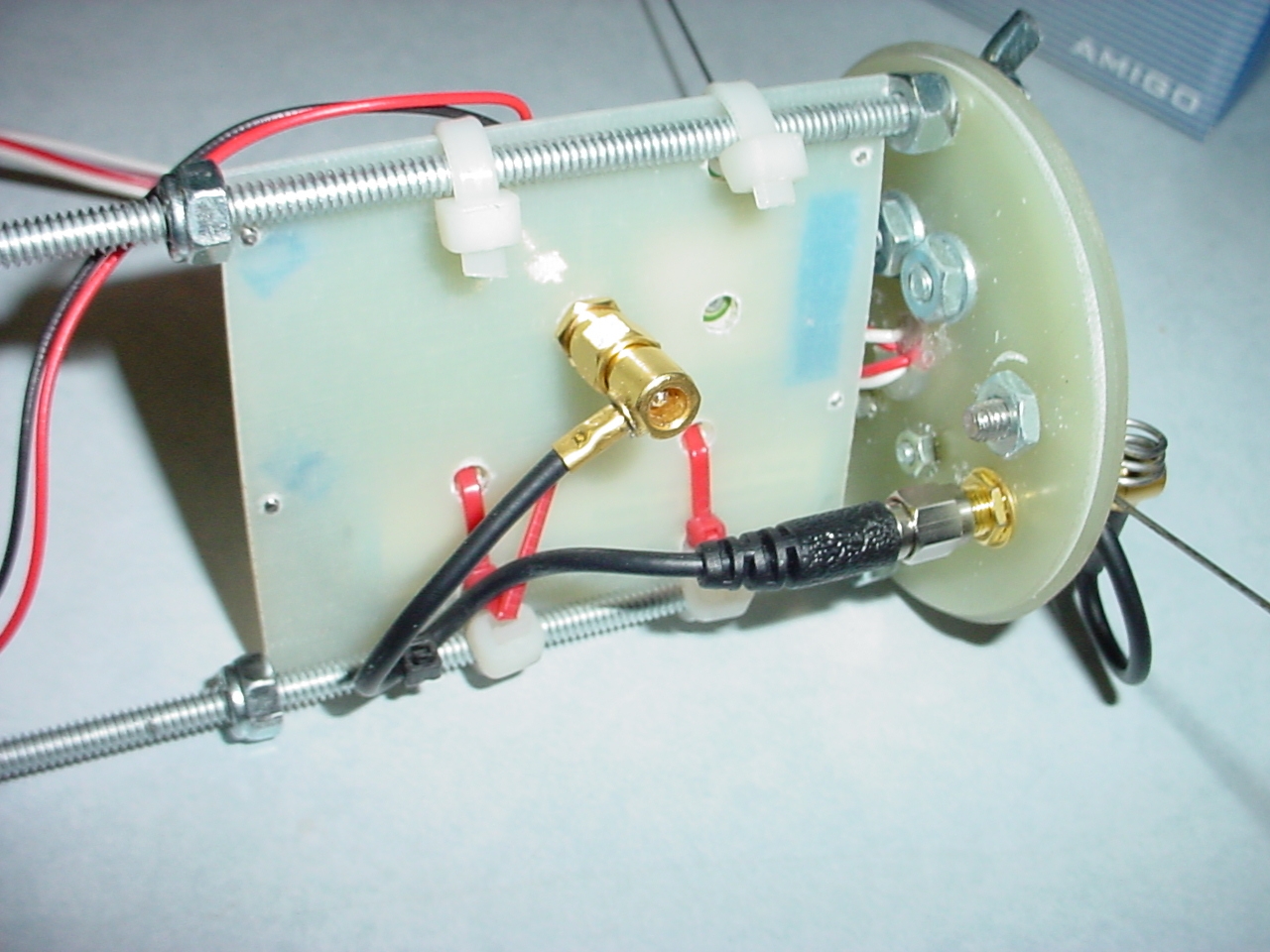

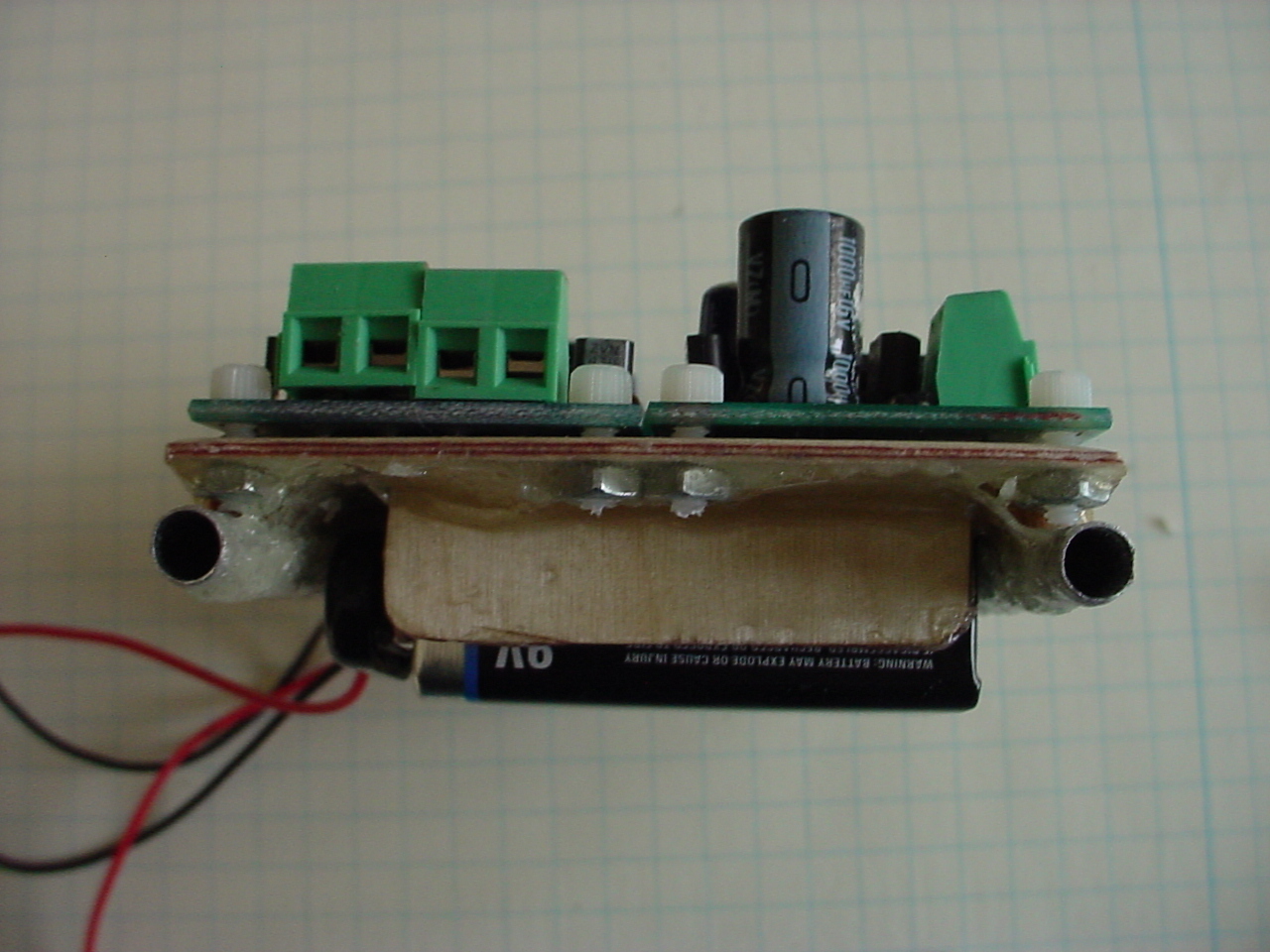

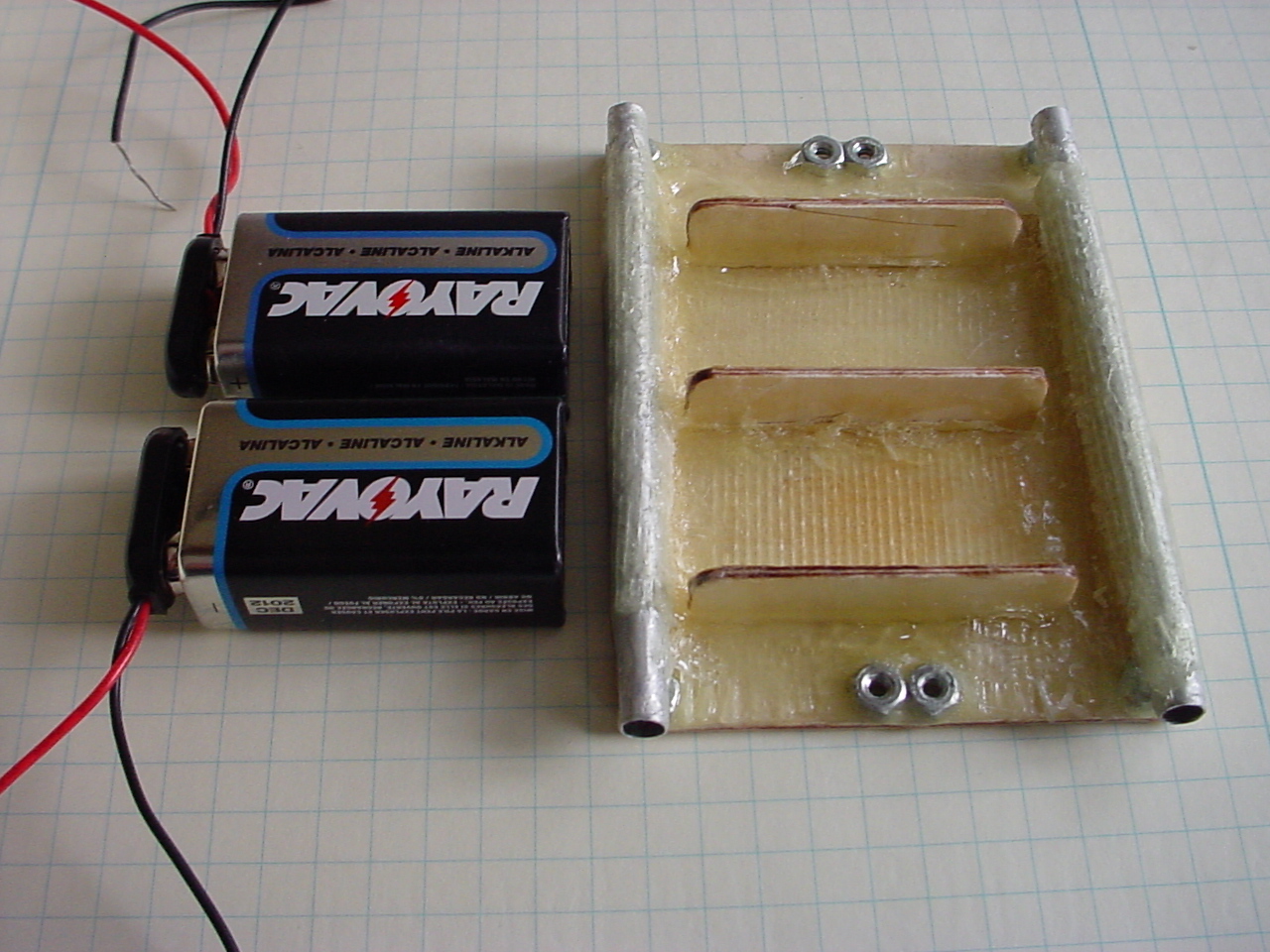

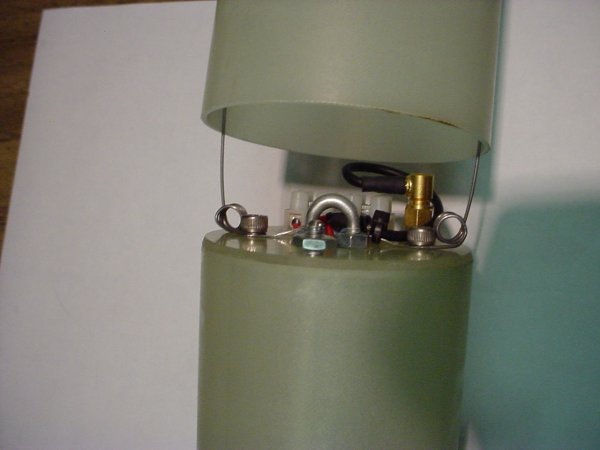

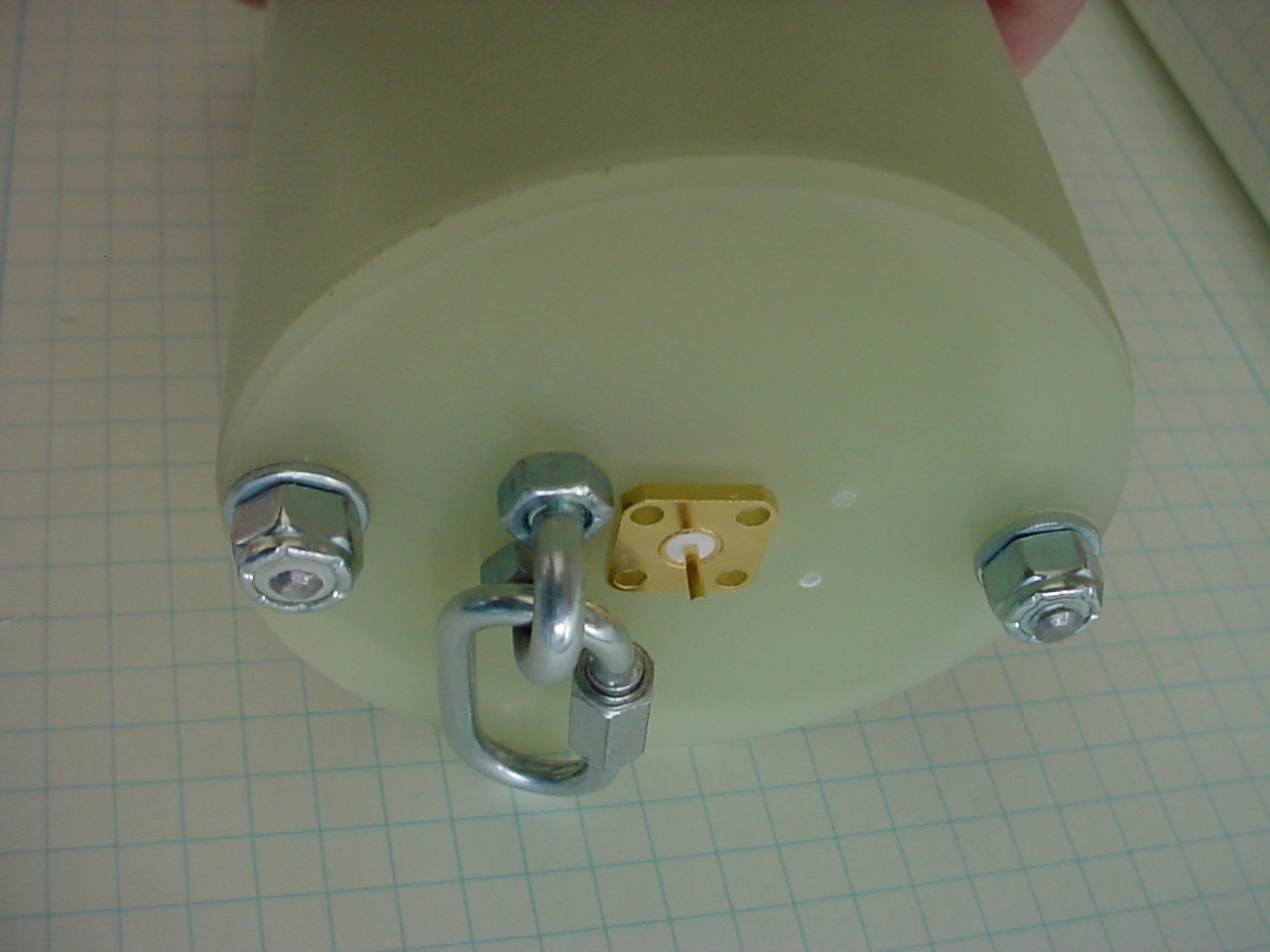

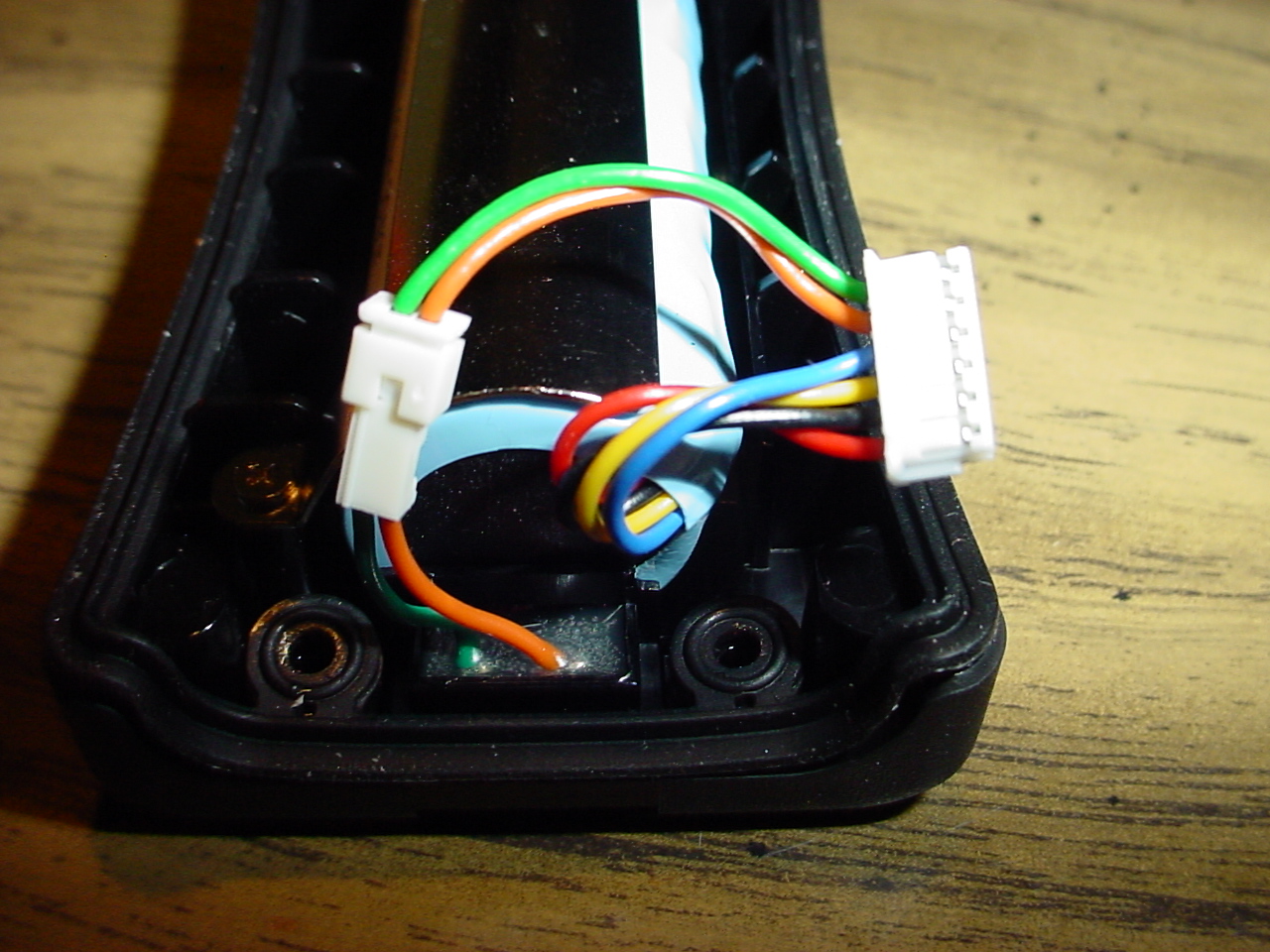

The avionics bay contained both altimeters as well as a modified Garmin DC20 dog tracking GPS and
MURS transmitter.

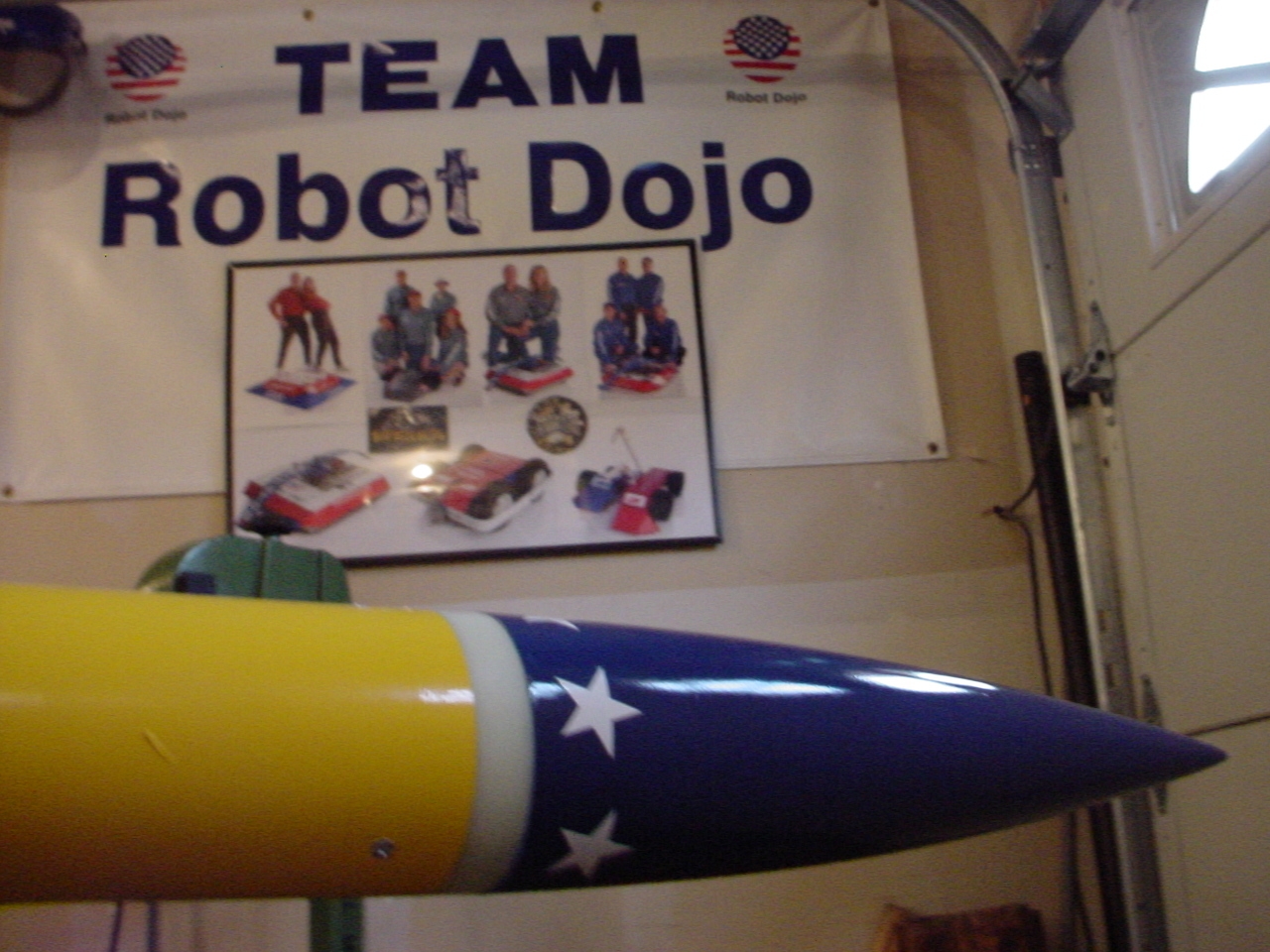

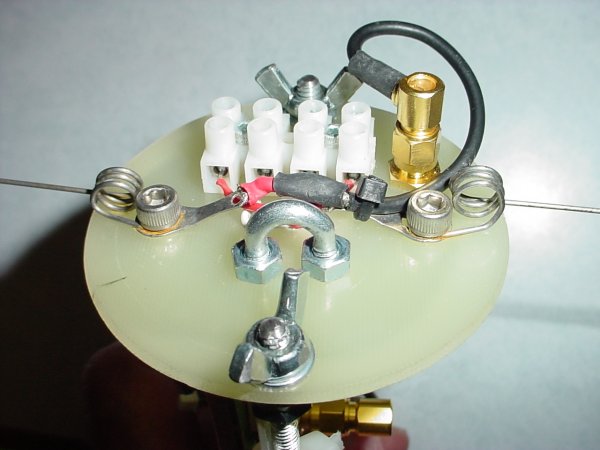

The nose cone was modified to accept

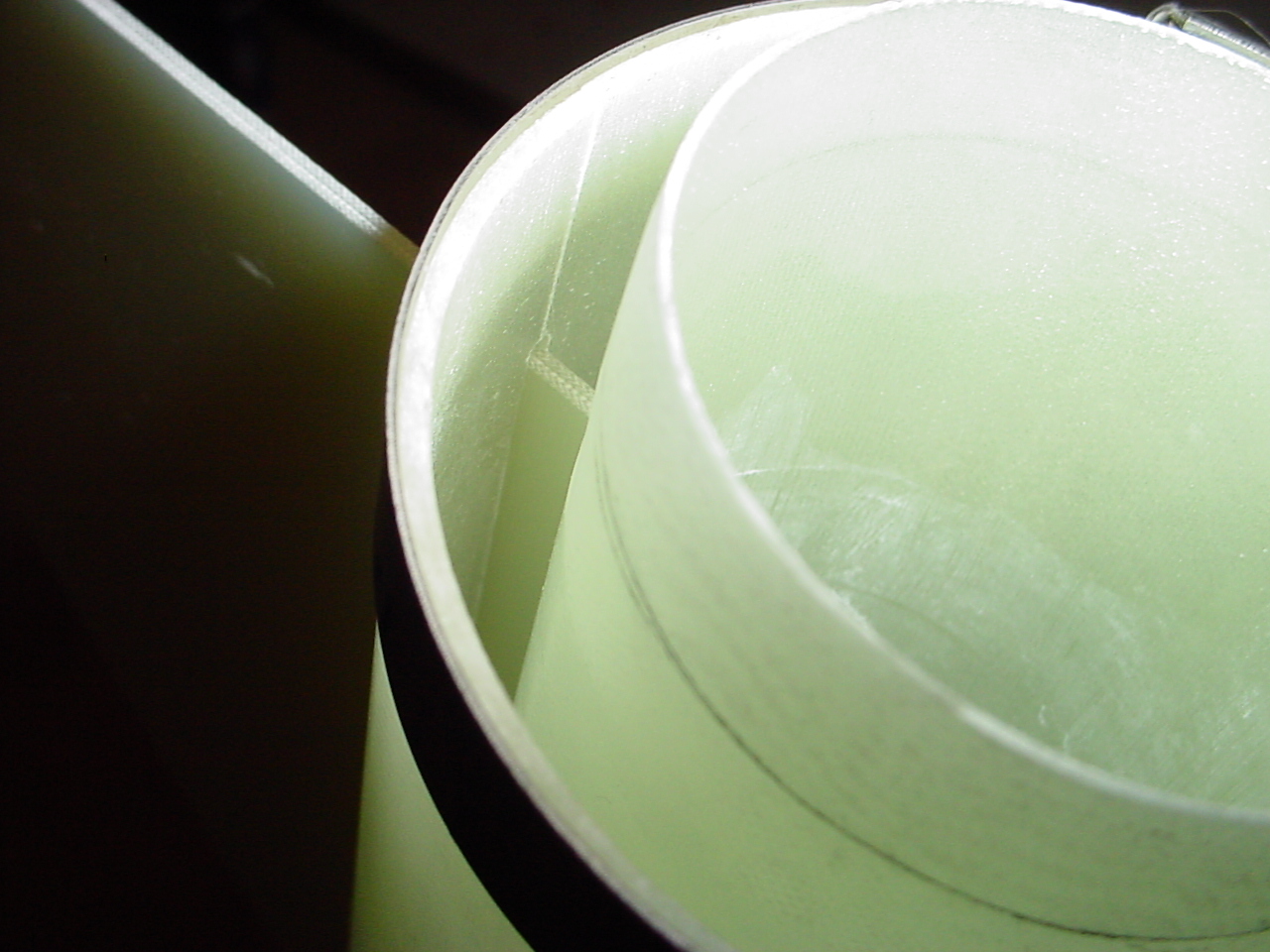

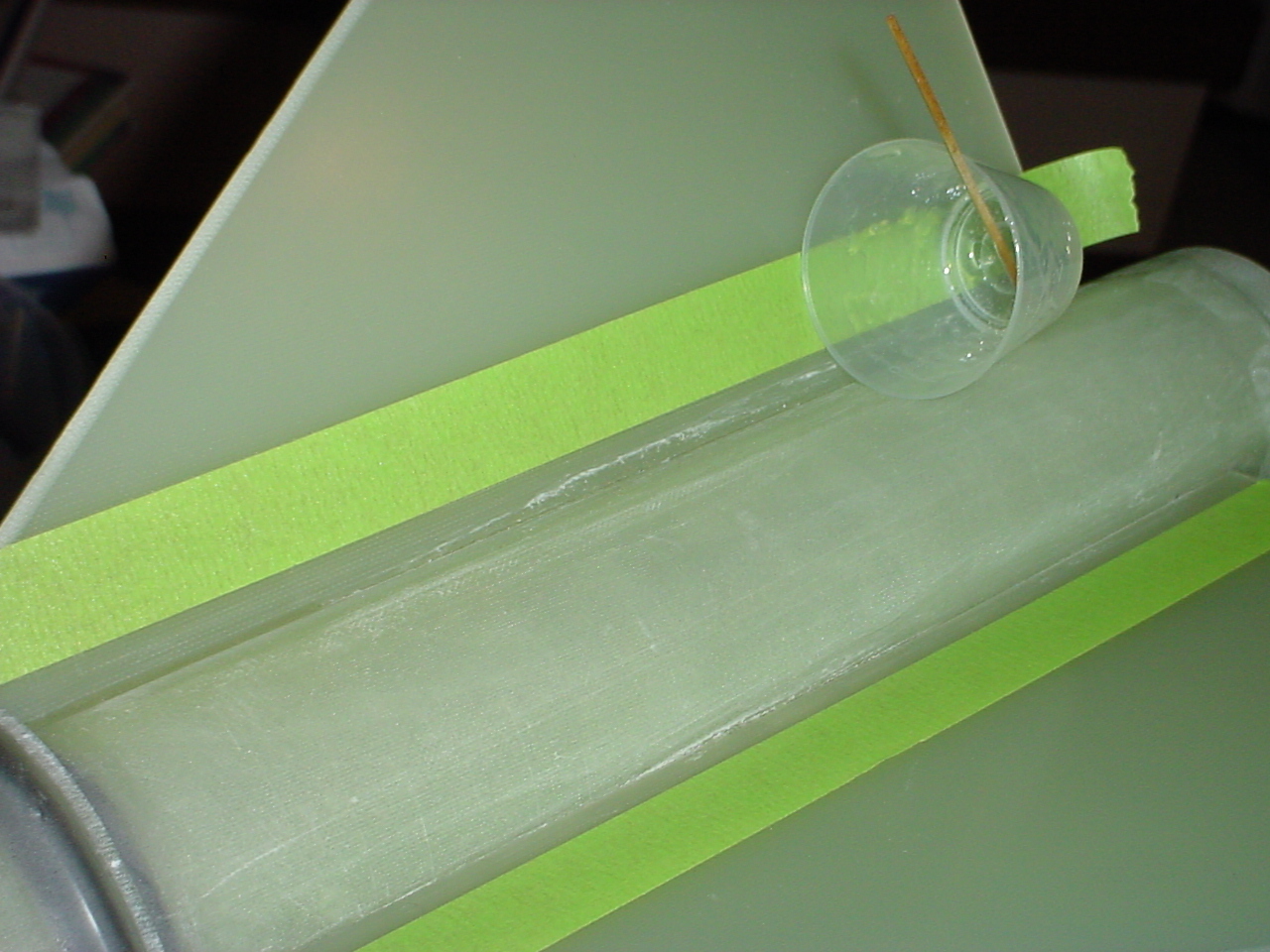

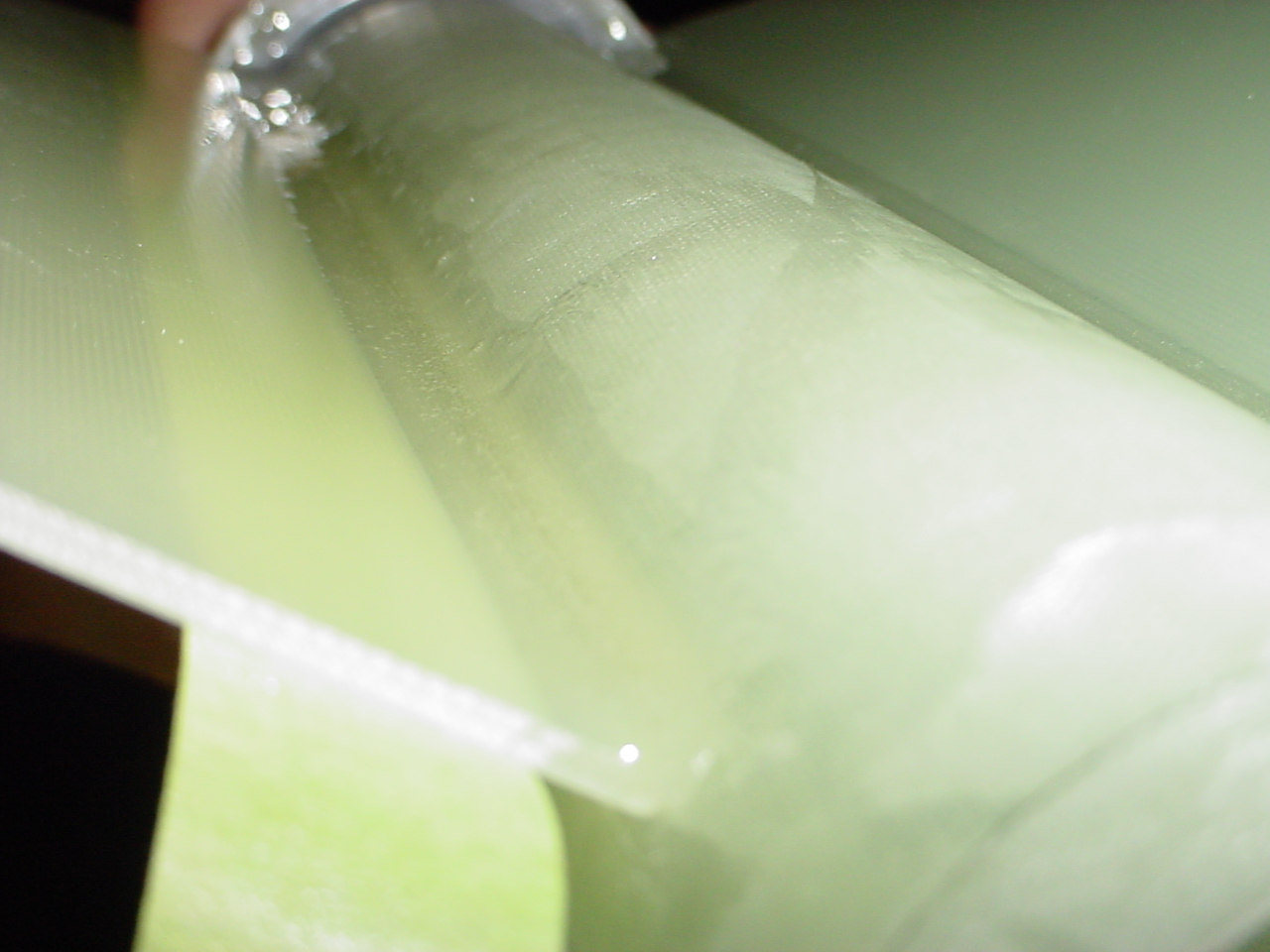

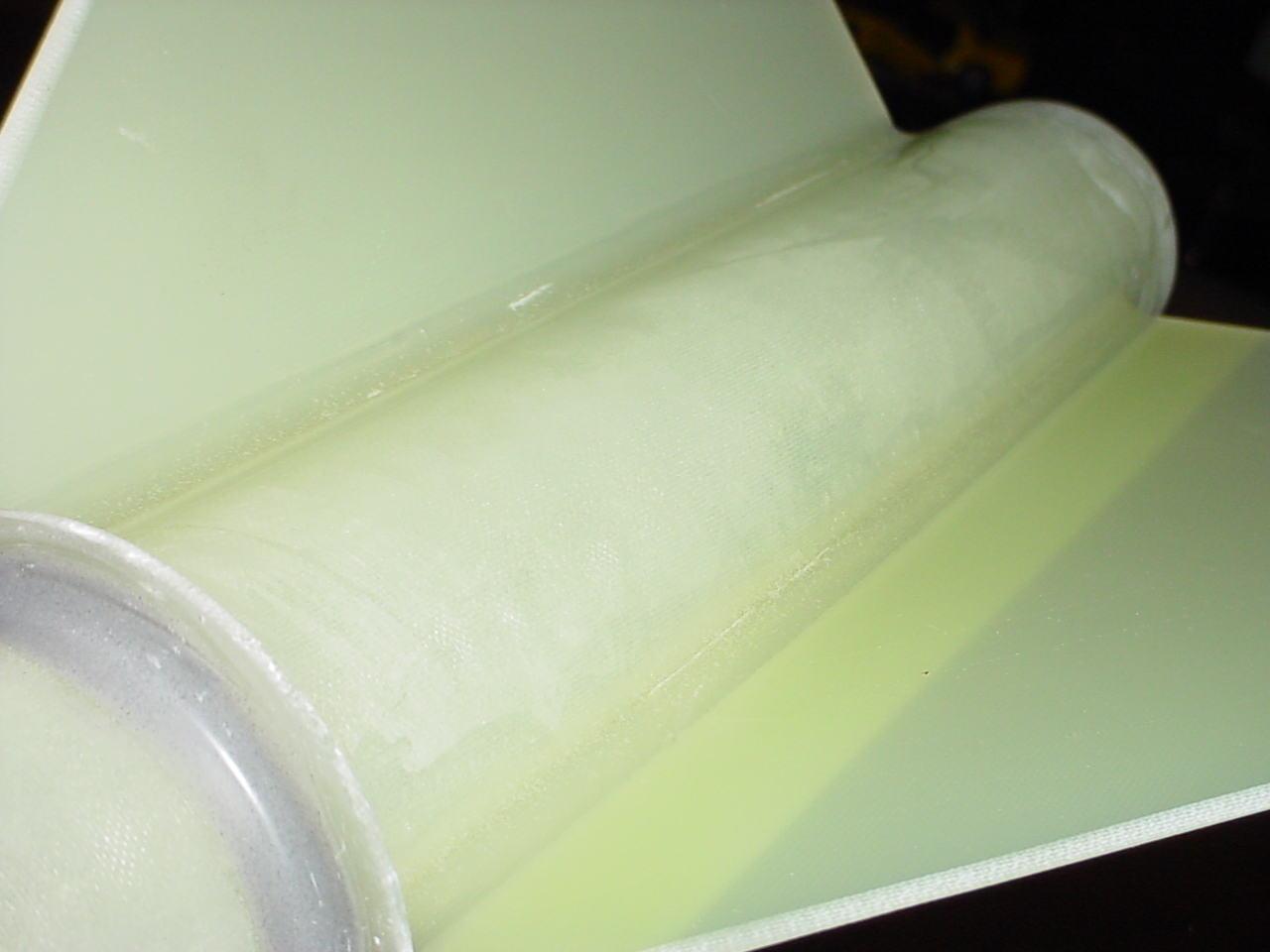

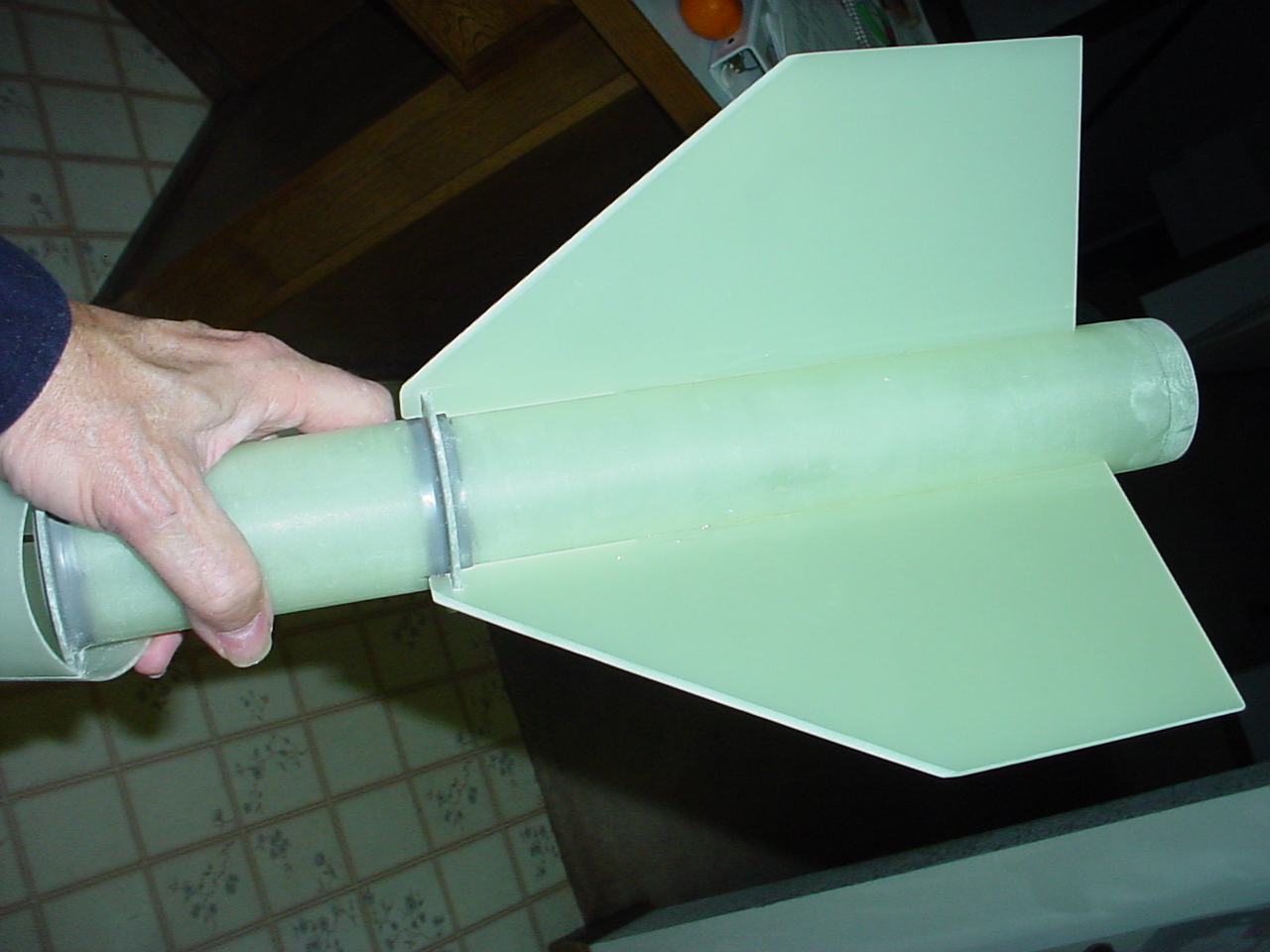

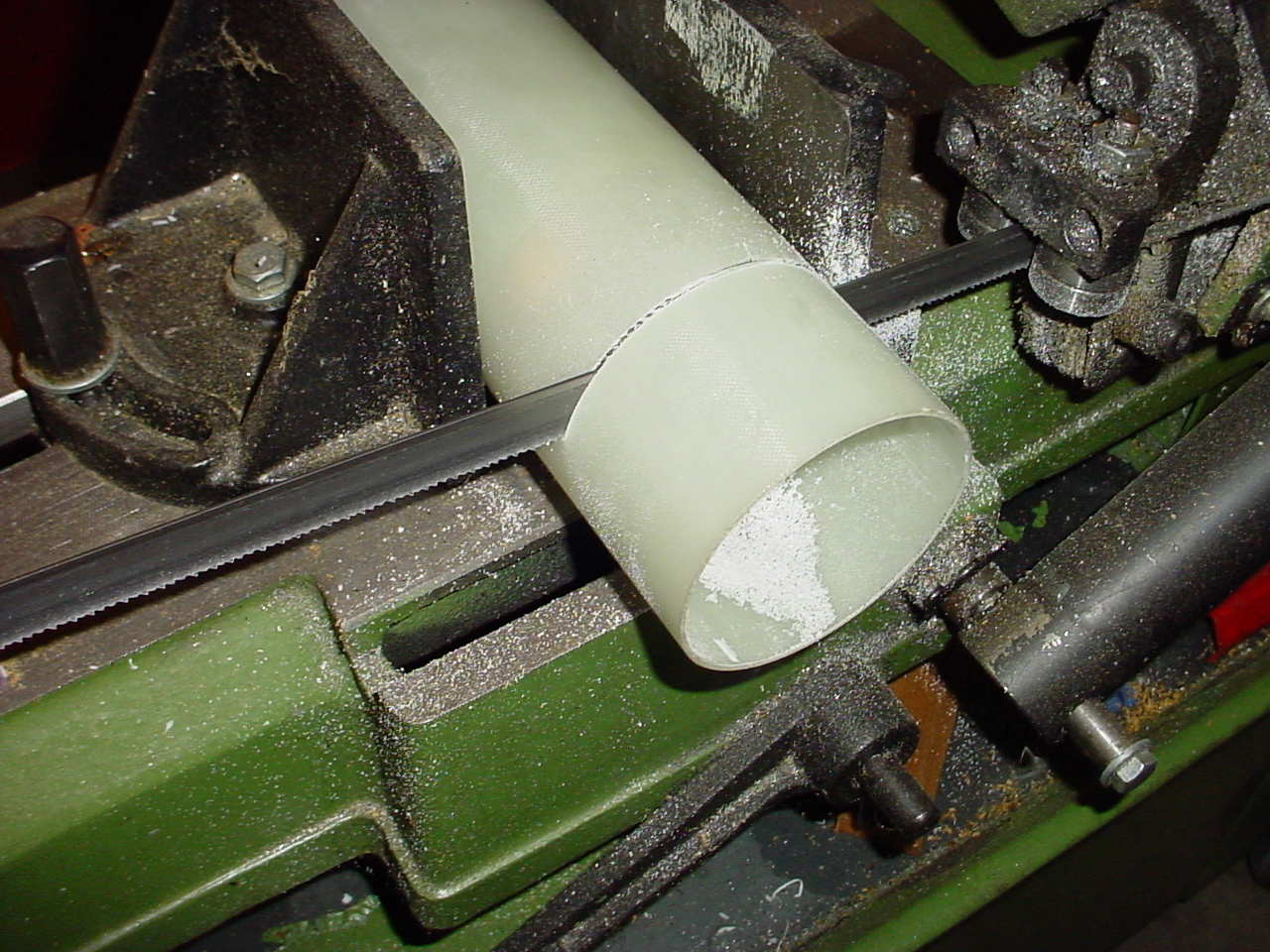

The entire rocket is made from G10 FRP (Fiberglass Reinforced Plastic) and the fins were coated

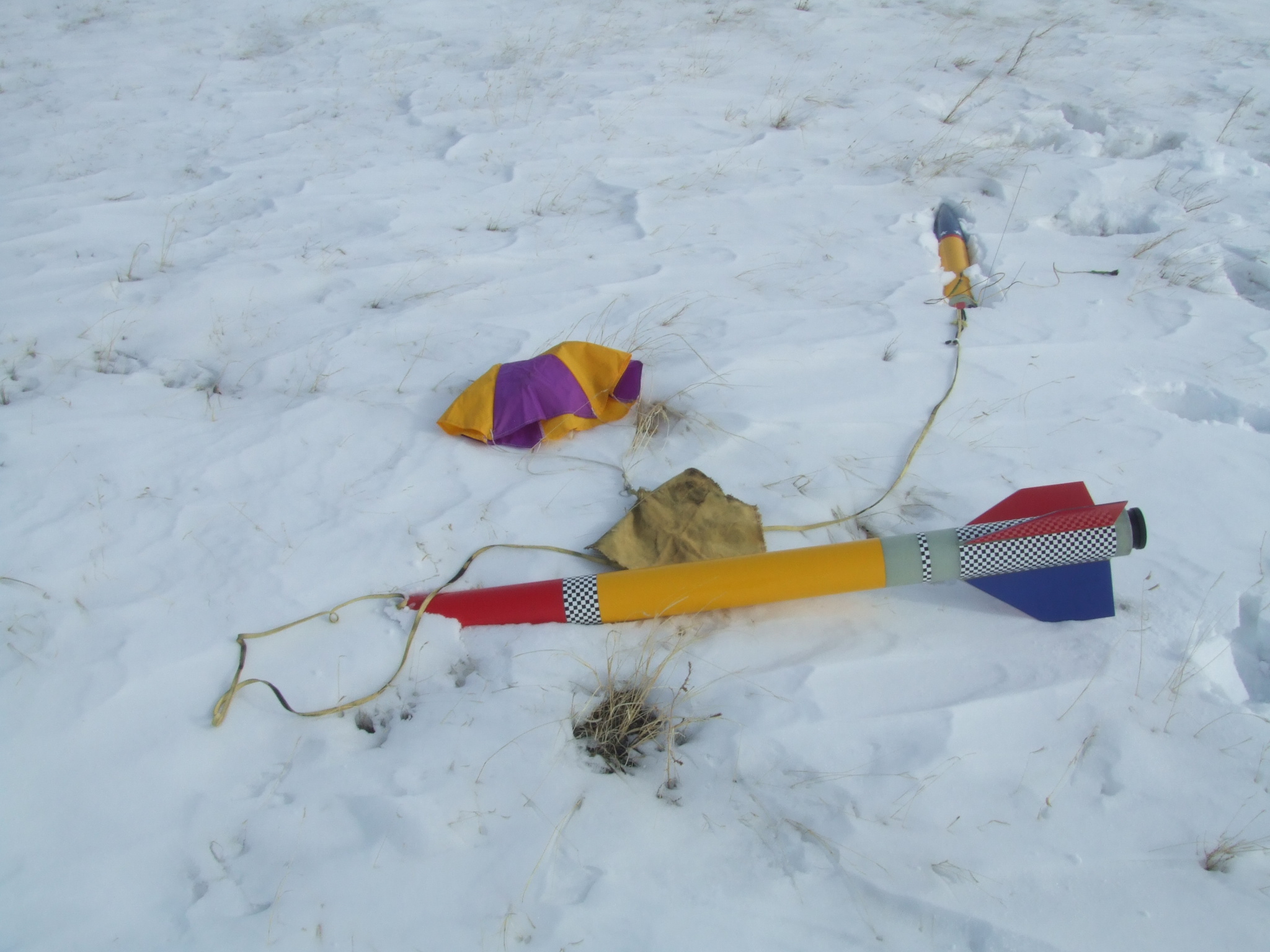

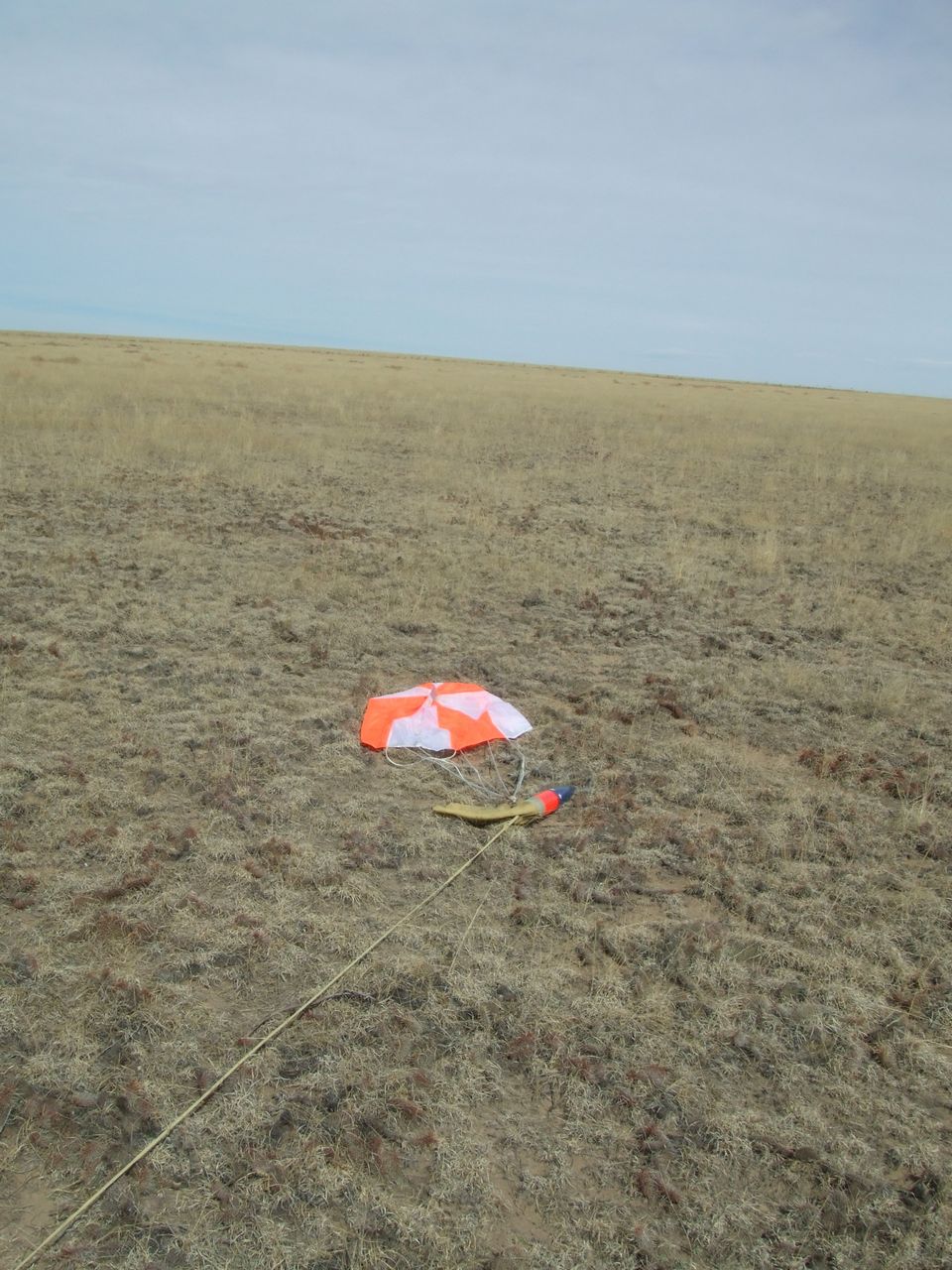

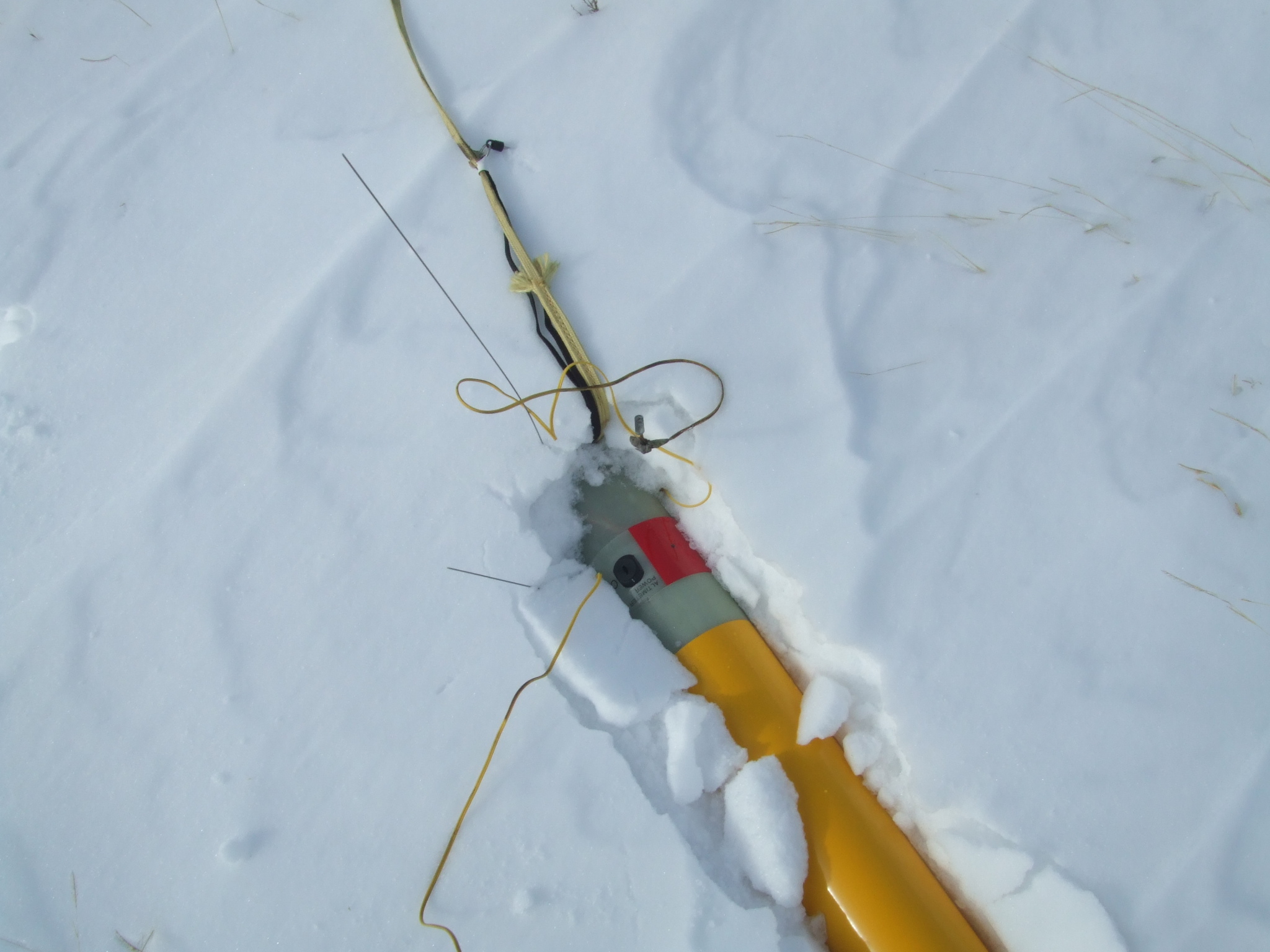

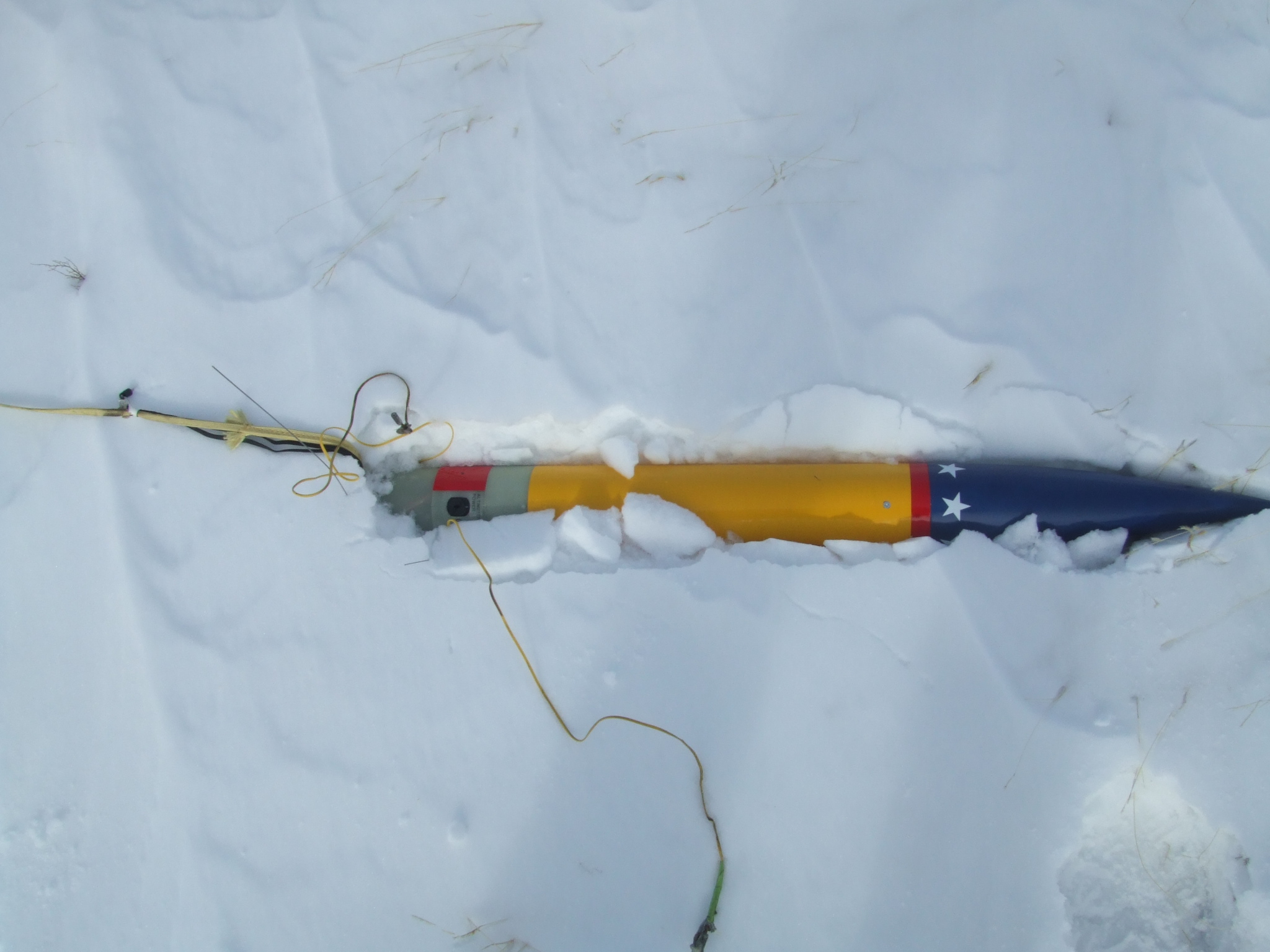

with an extra layer of 8oz FG cloth tip-to-tip. Slipstick I reached 3200 feet AGL on an Aerotech J350W motor
and landed 800 yards east of the launch pad. I took both NAR and TRA written tests while at the launch site and only missed one question. |
Video: Slipstick_HP2_Launch.AVI (61.3MB)

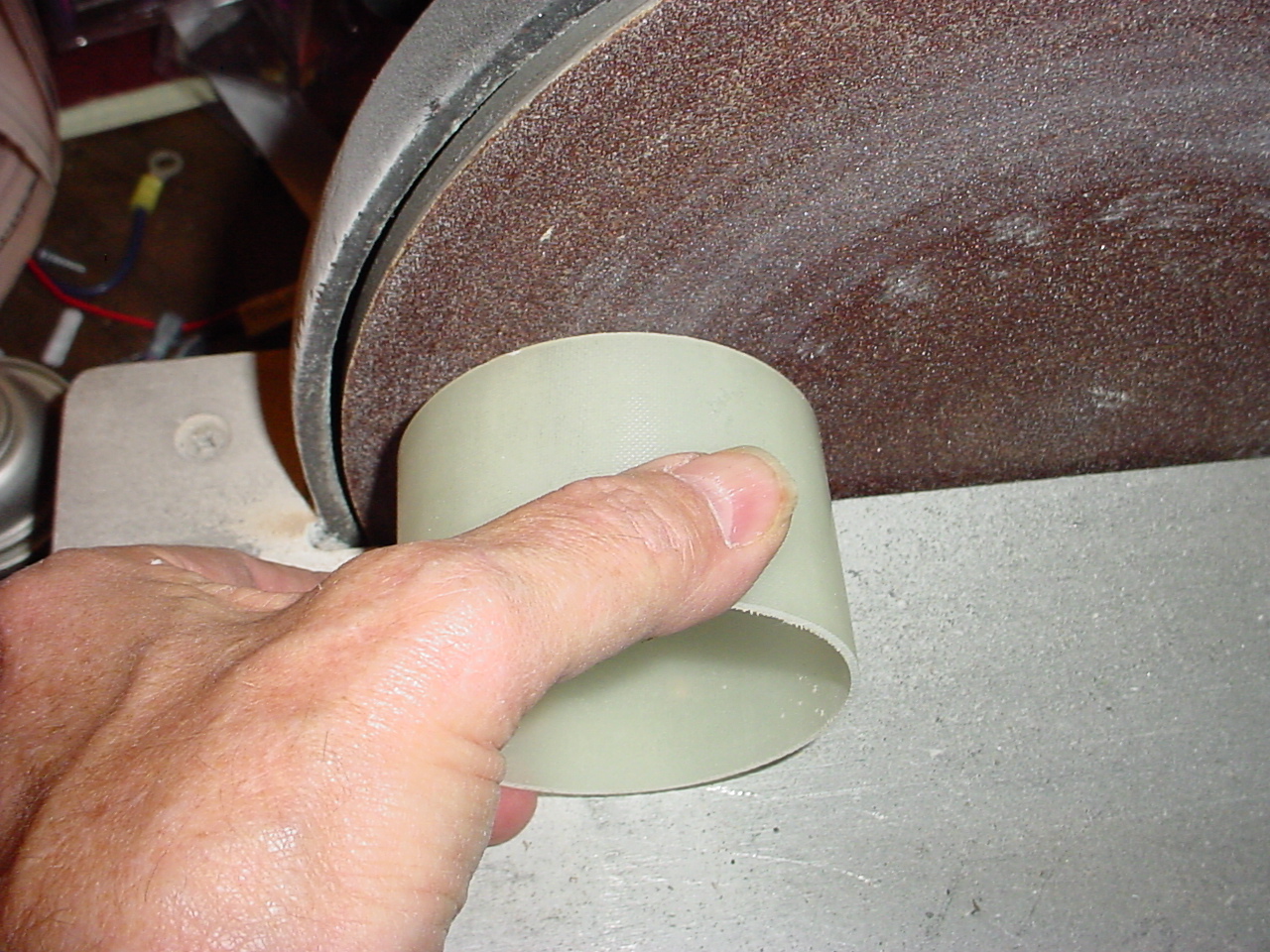

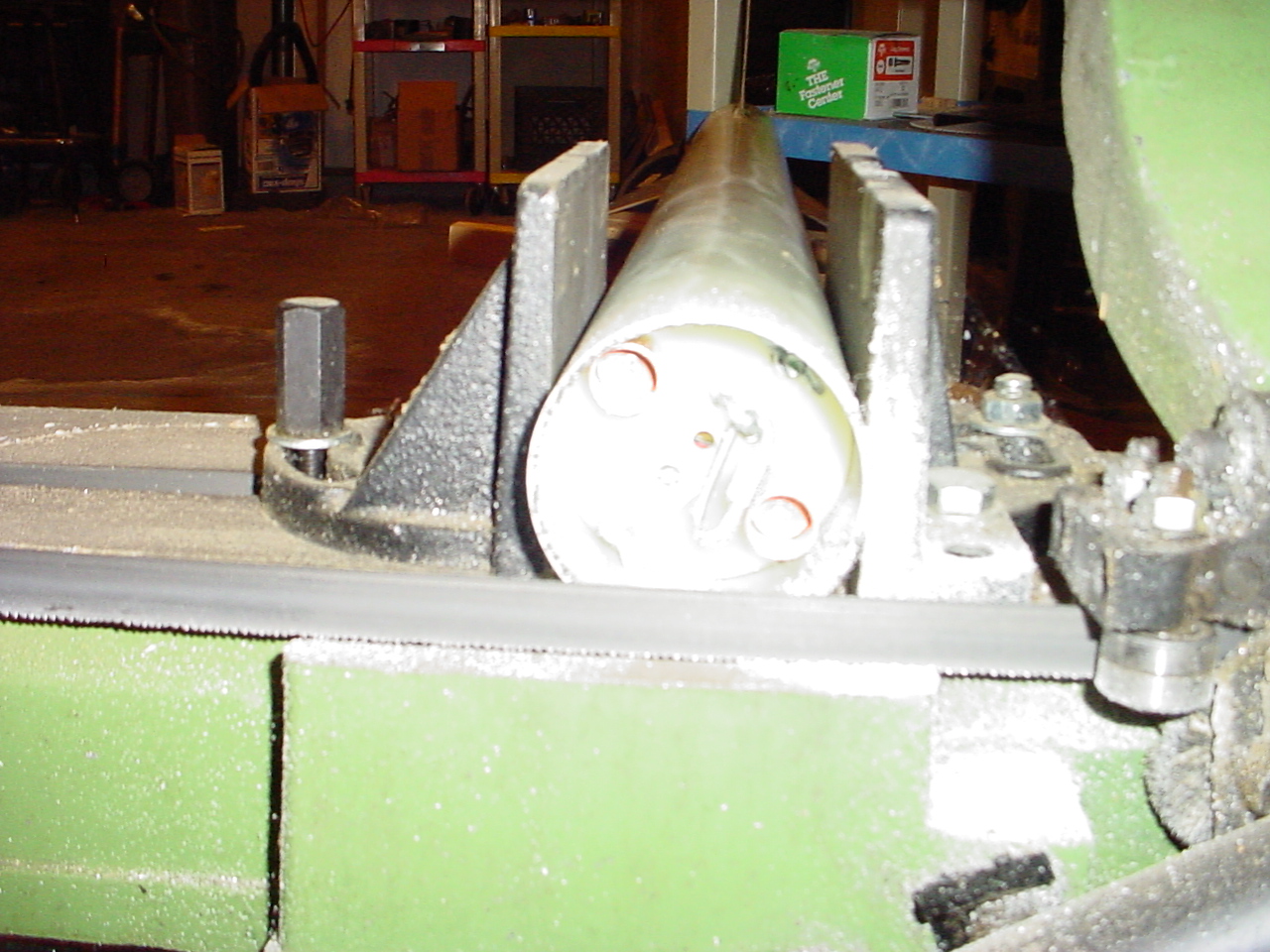

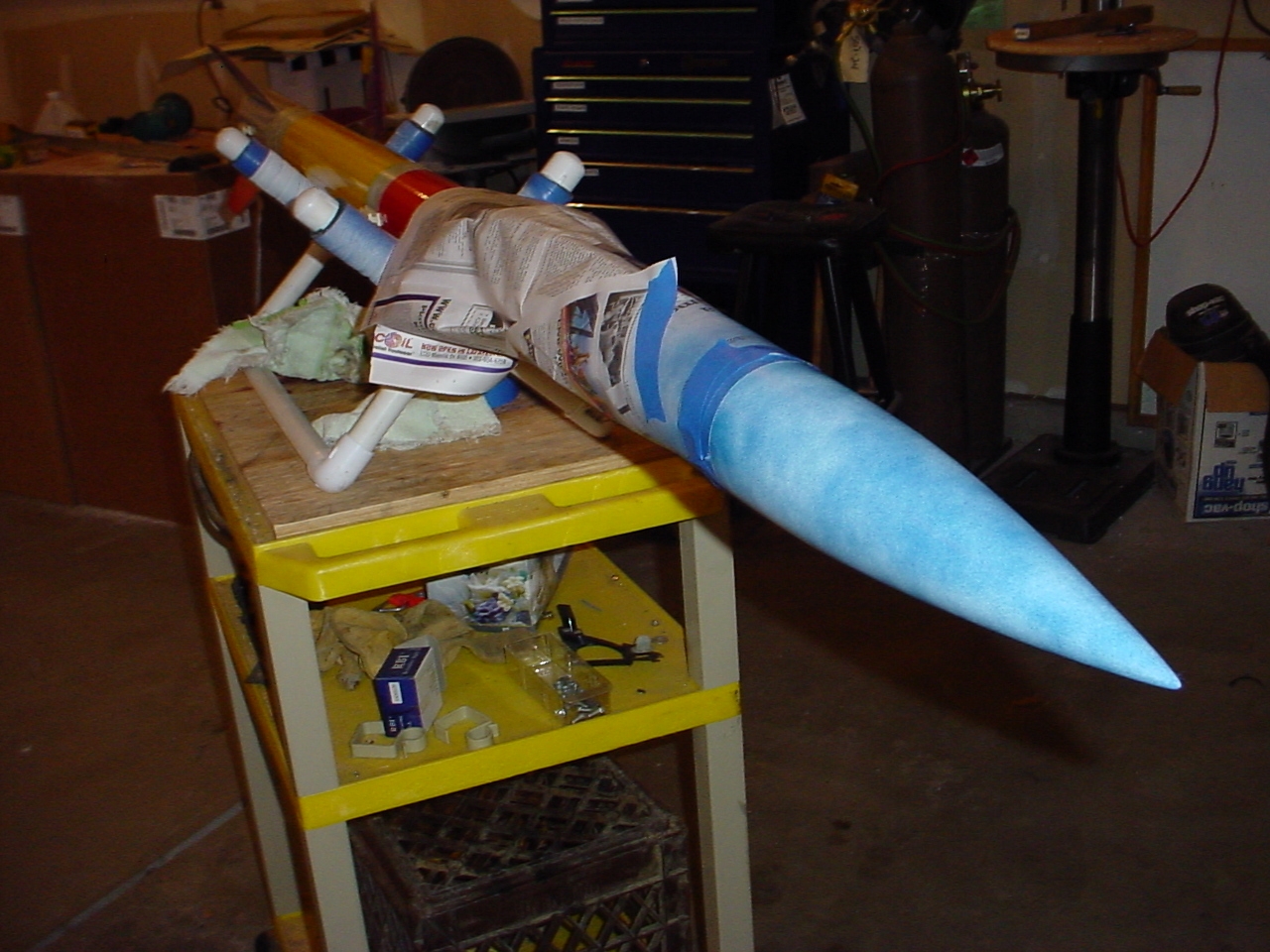

SLIPSTICK II Build

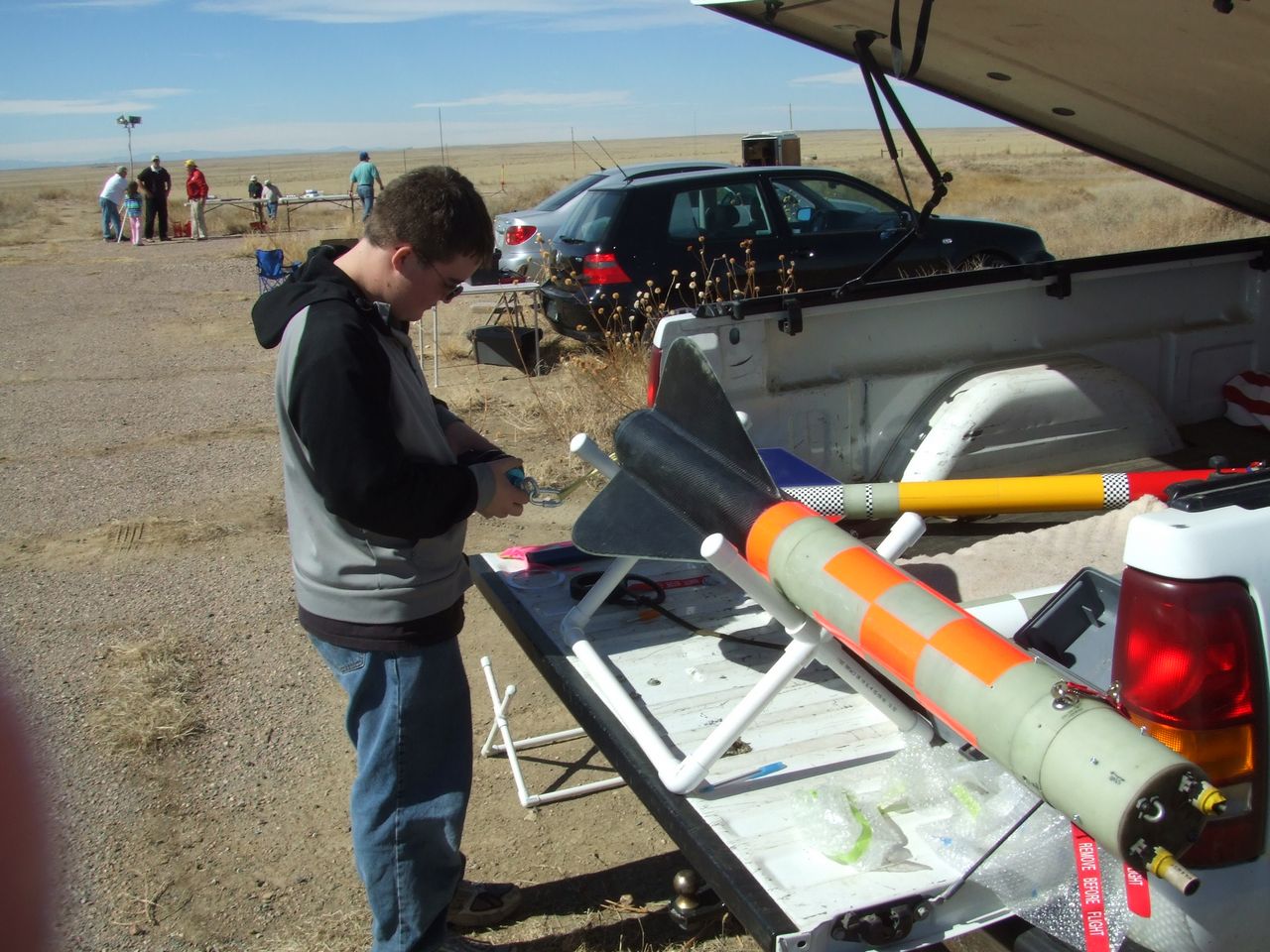

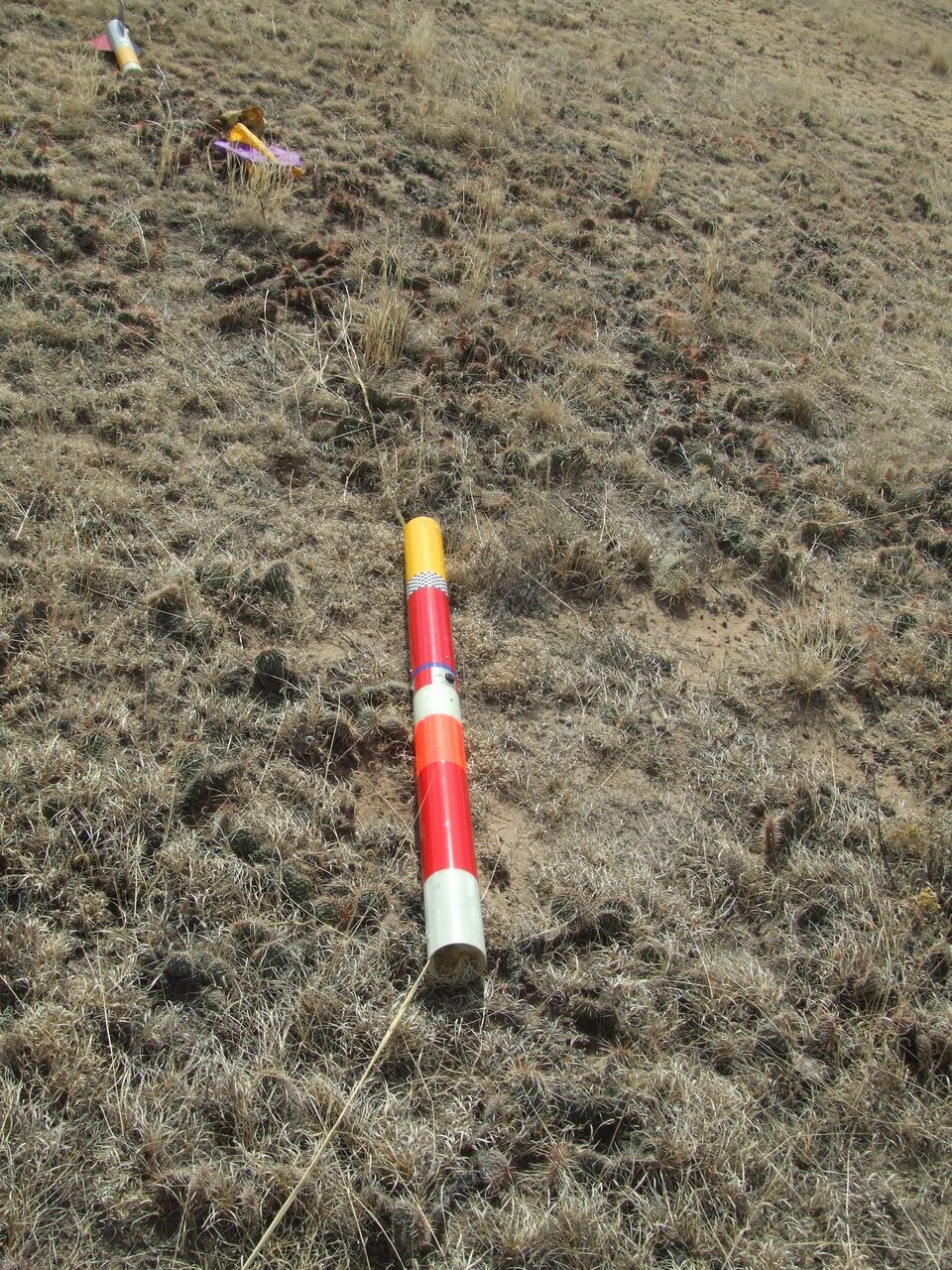

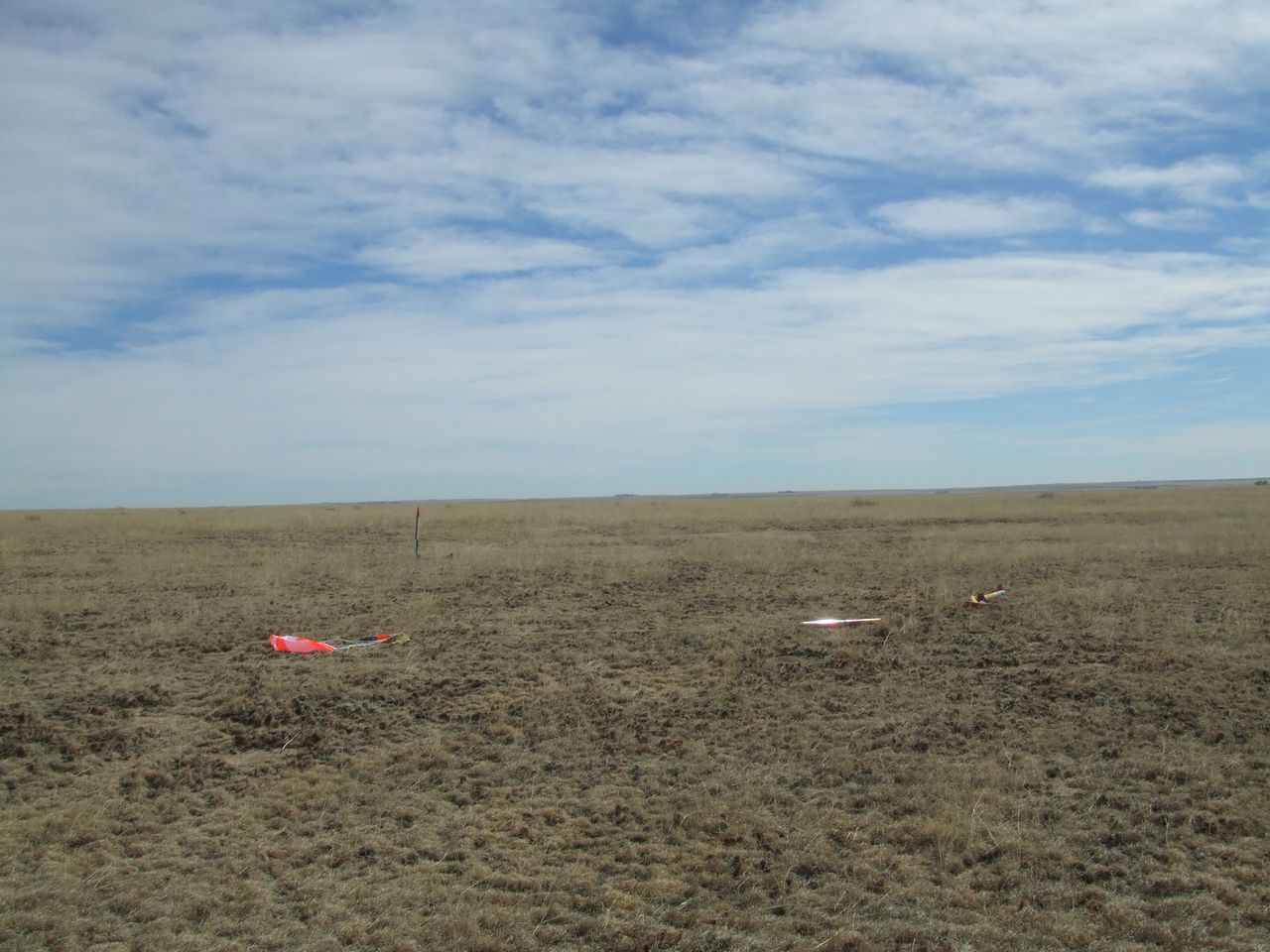

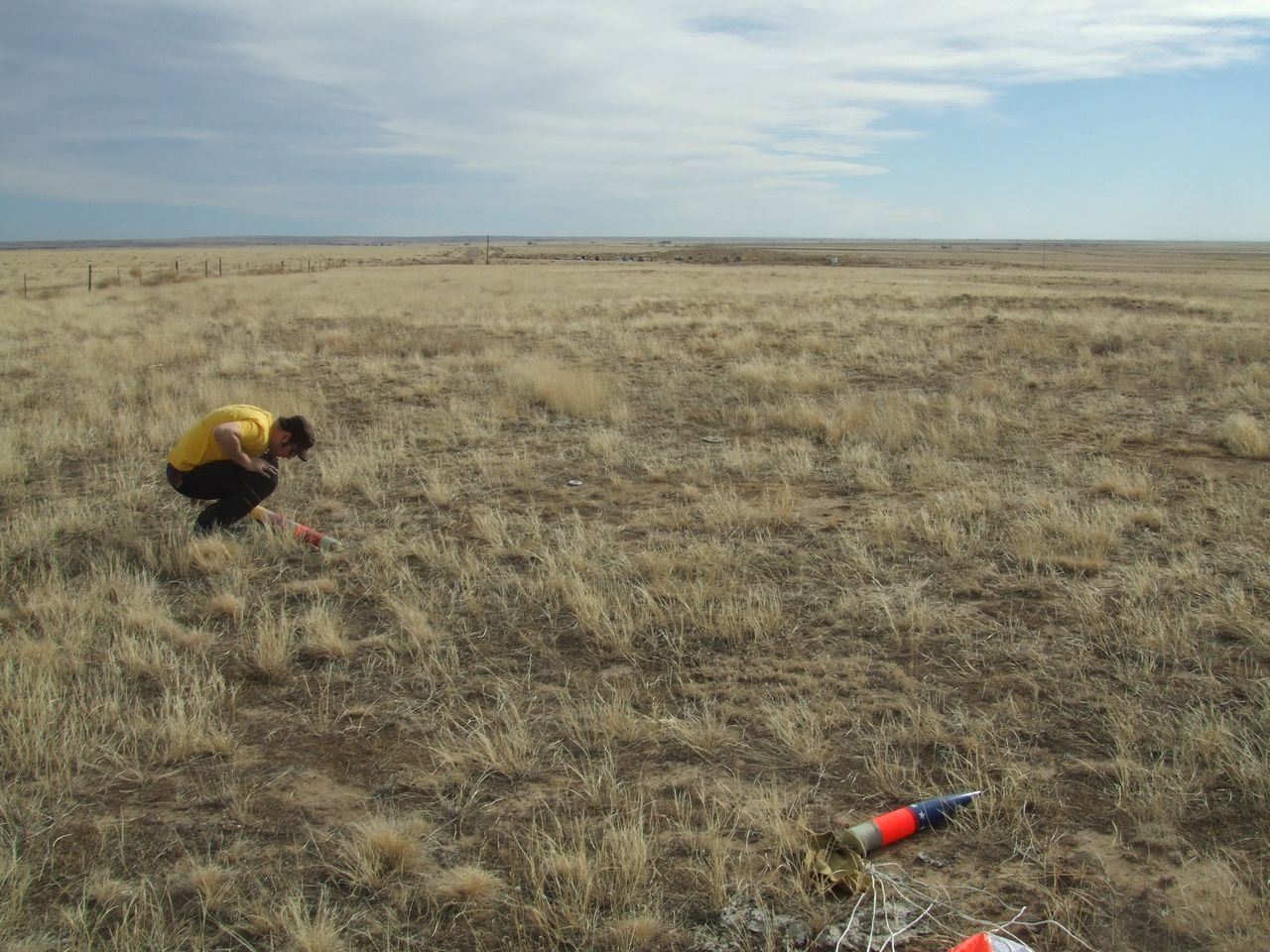

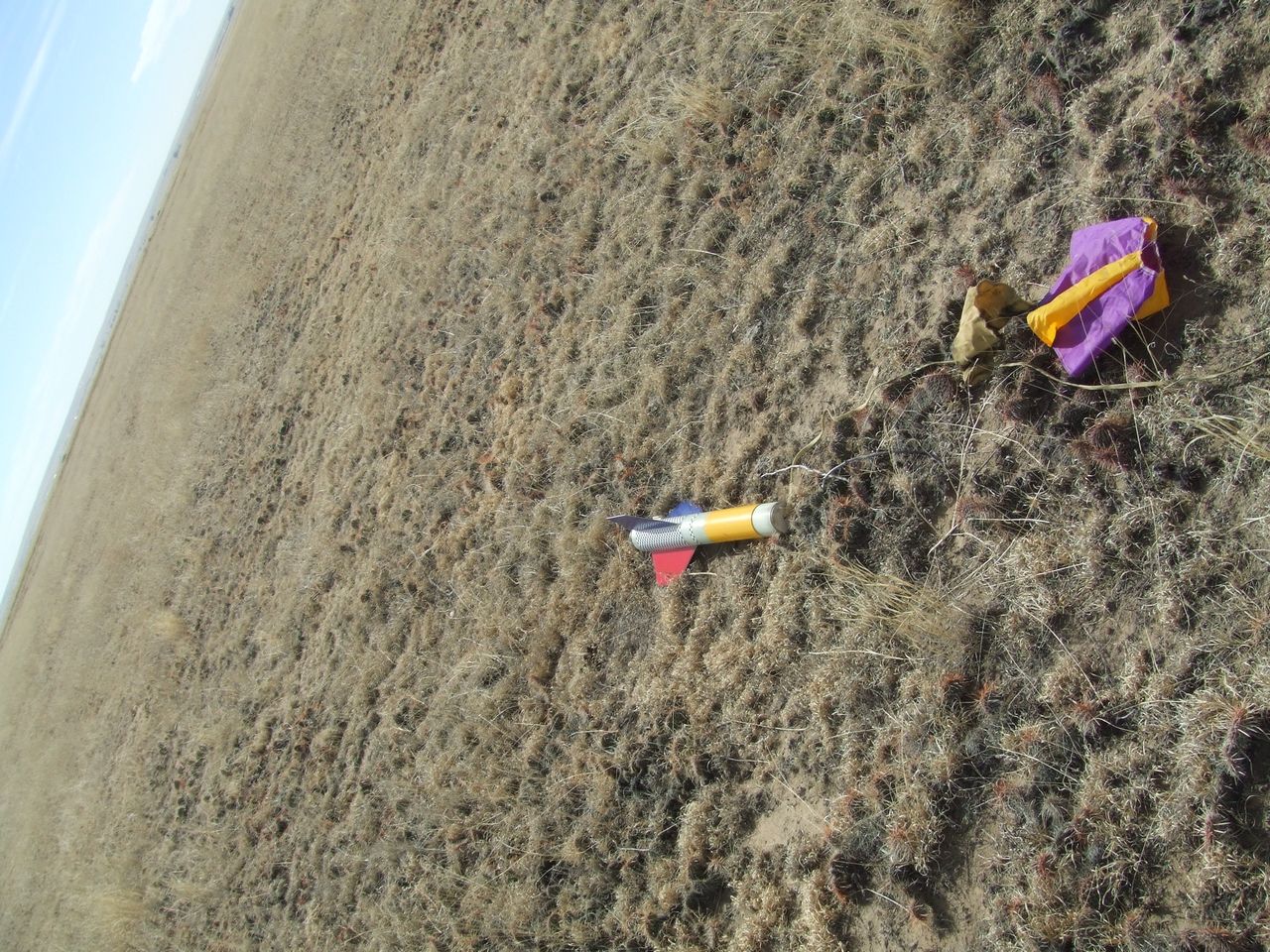

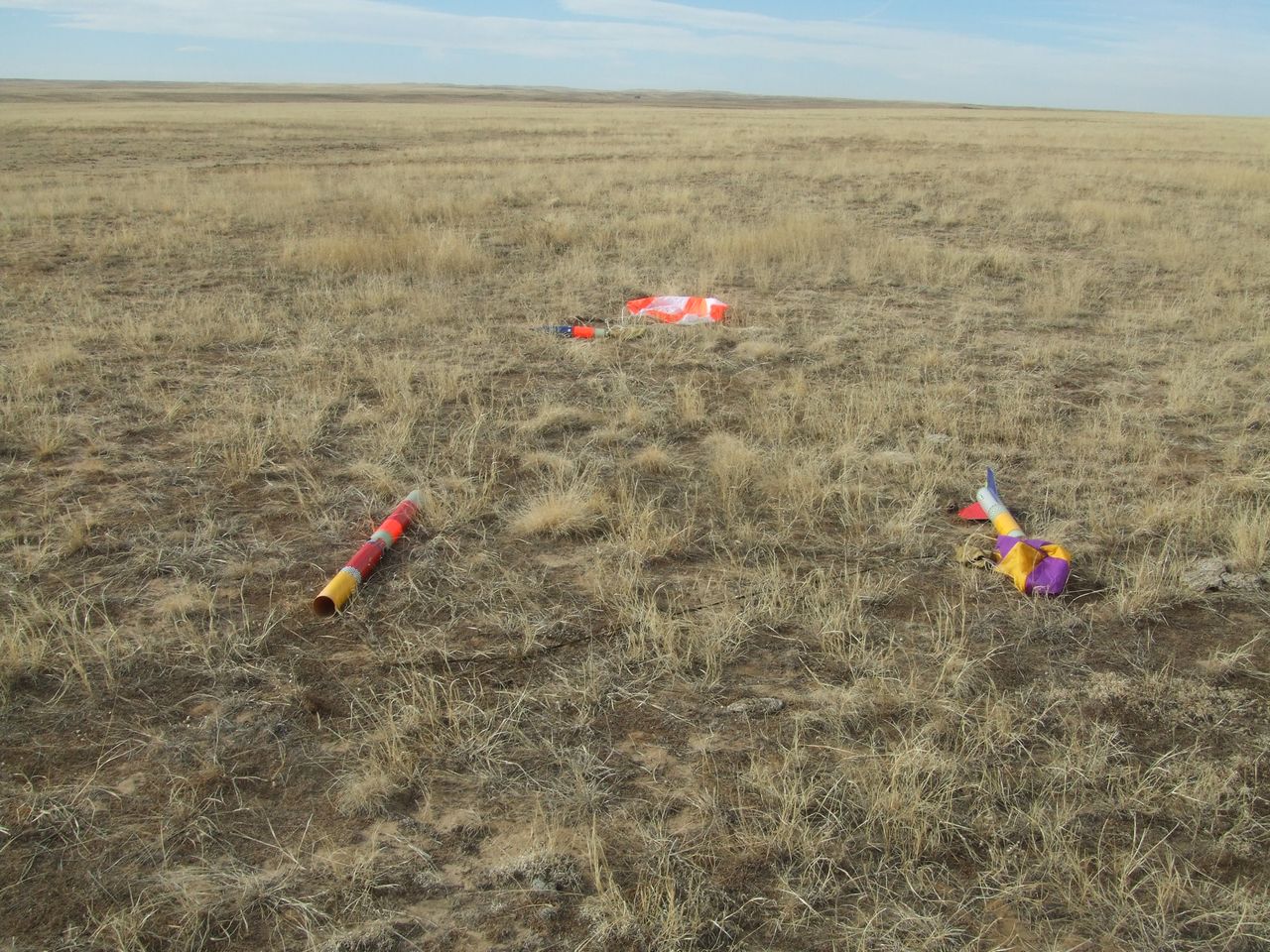

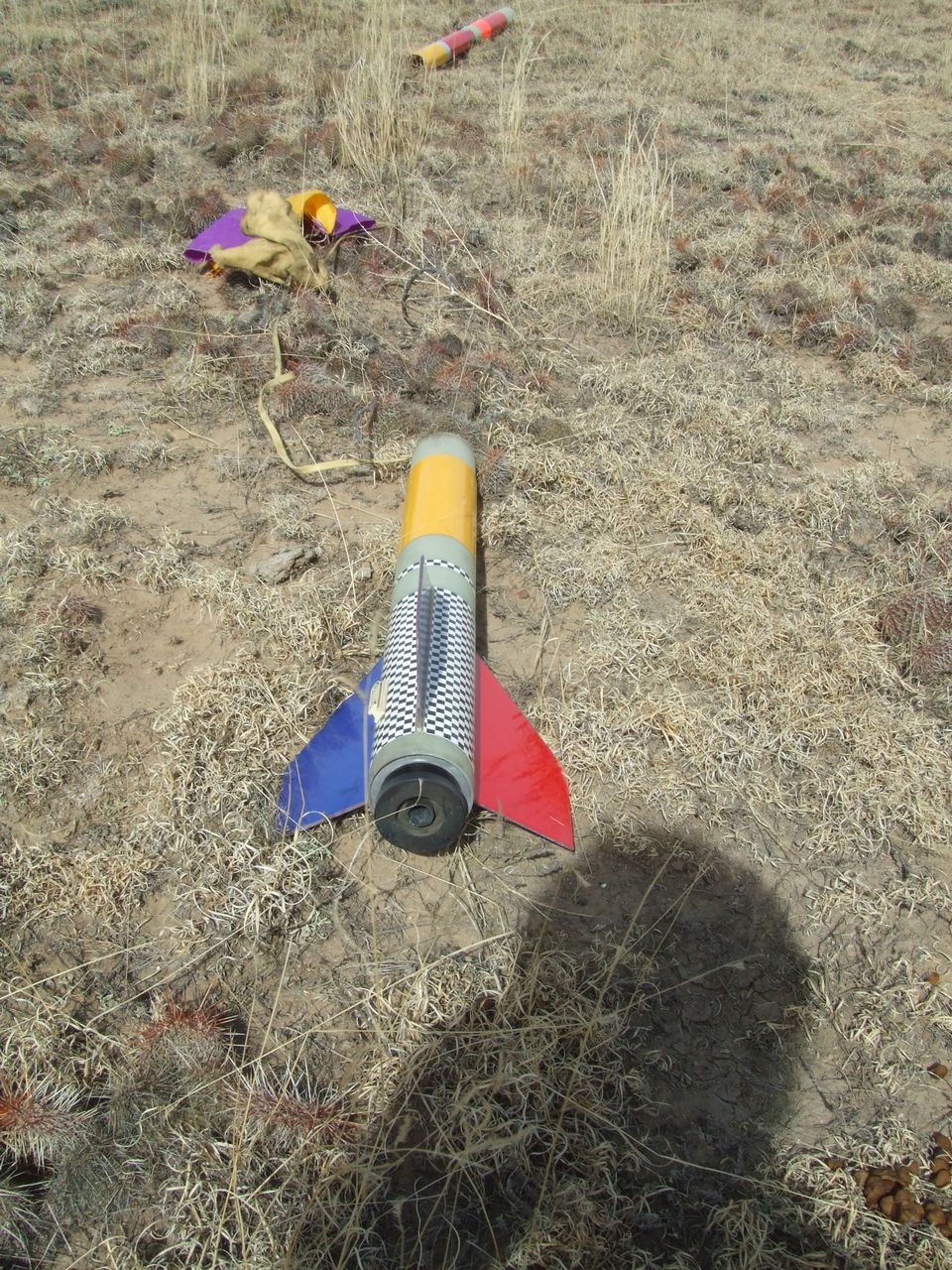

Two more flights were performed Mar 3, 2008

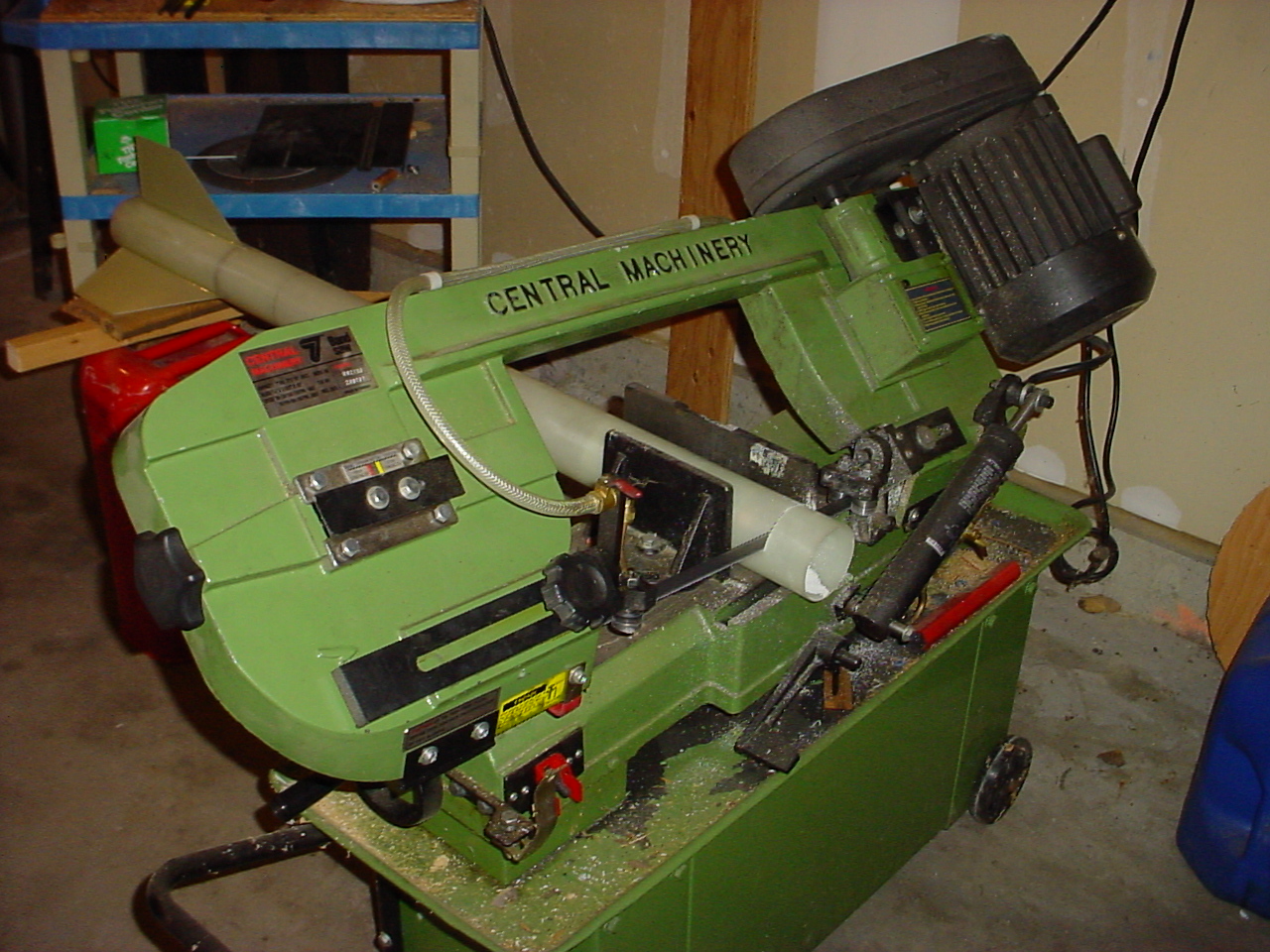

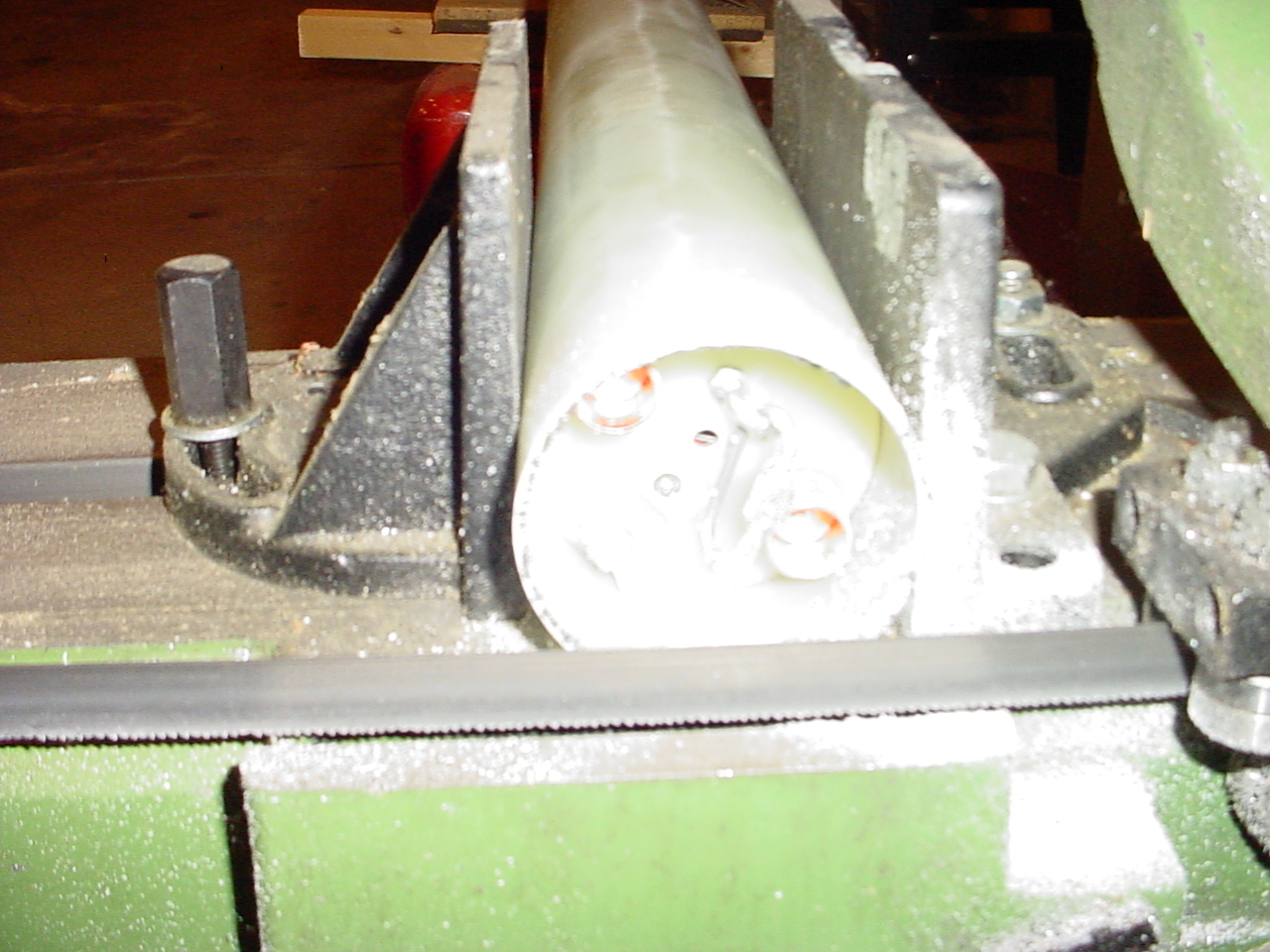

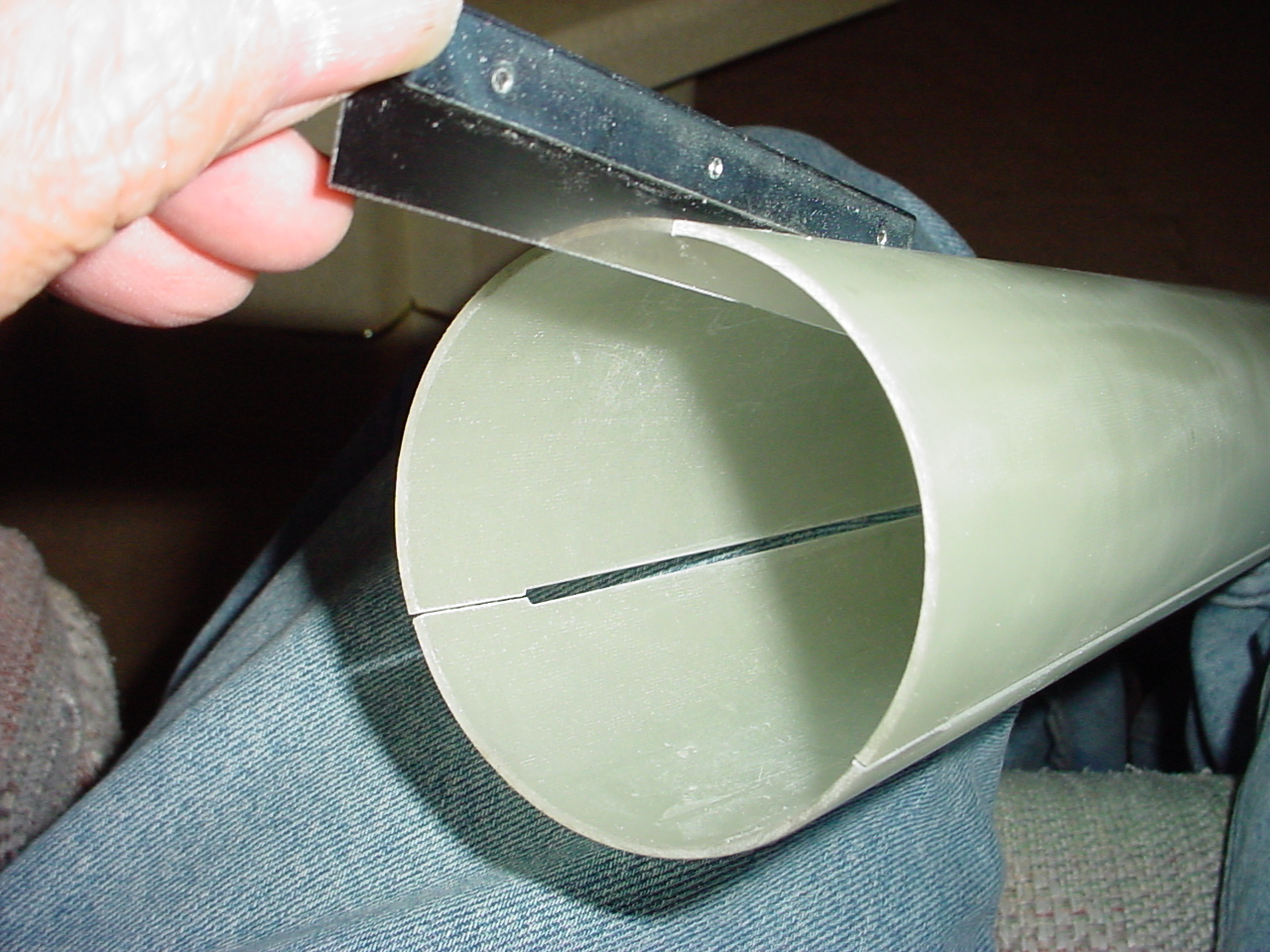

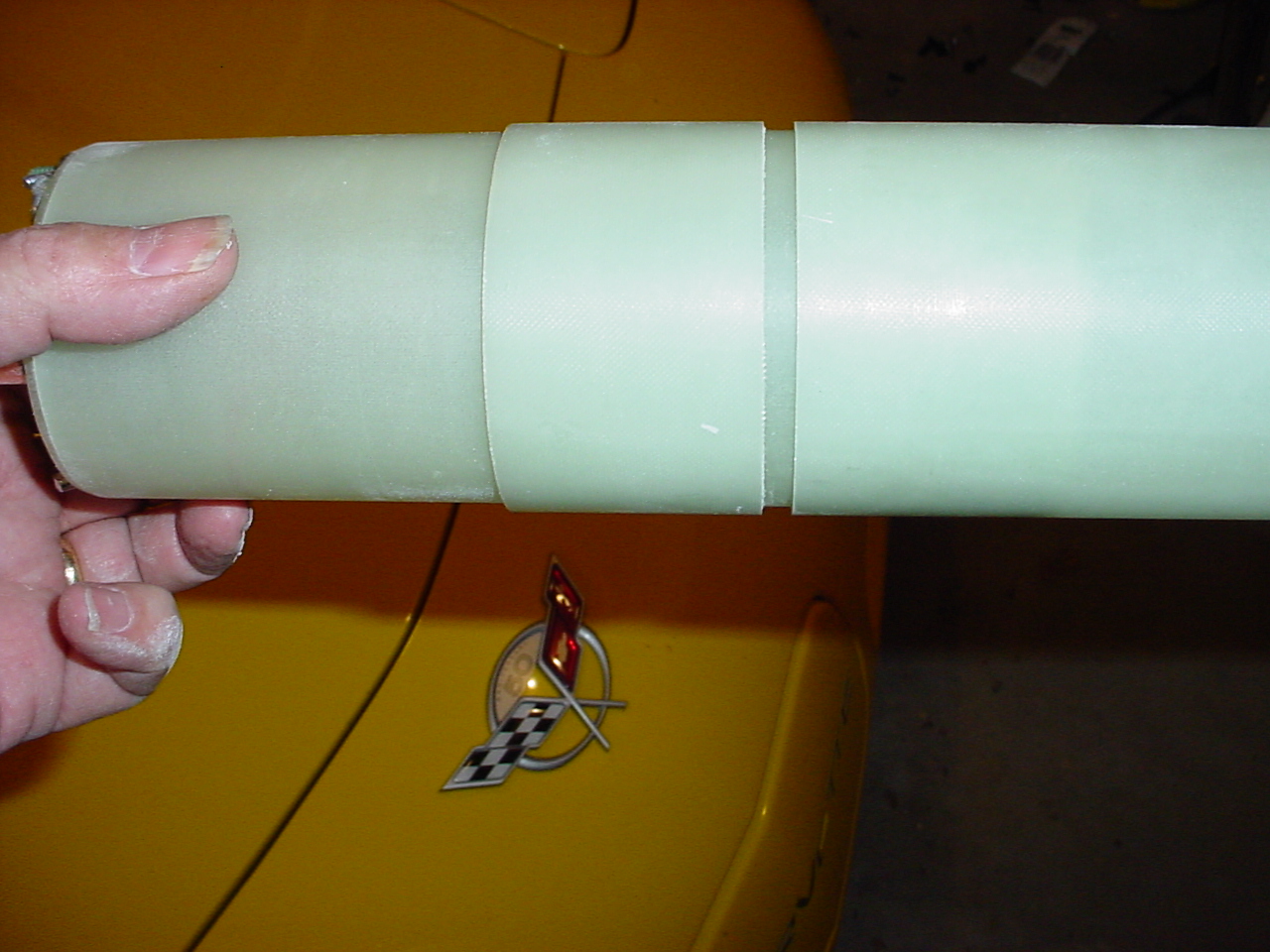

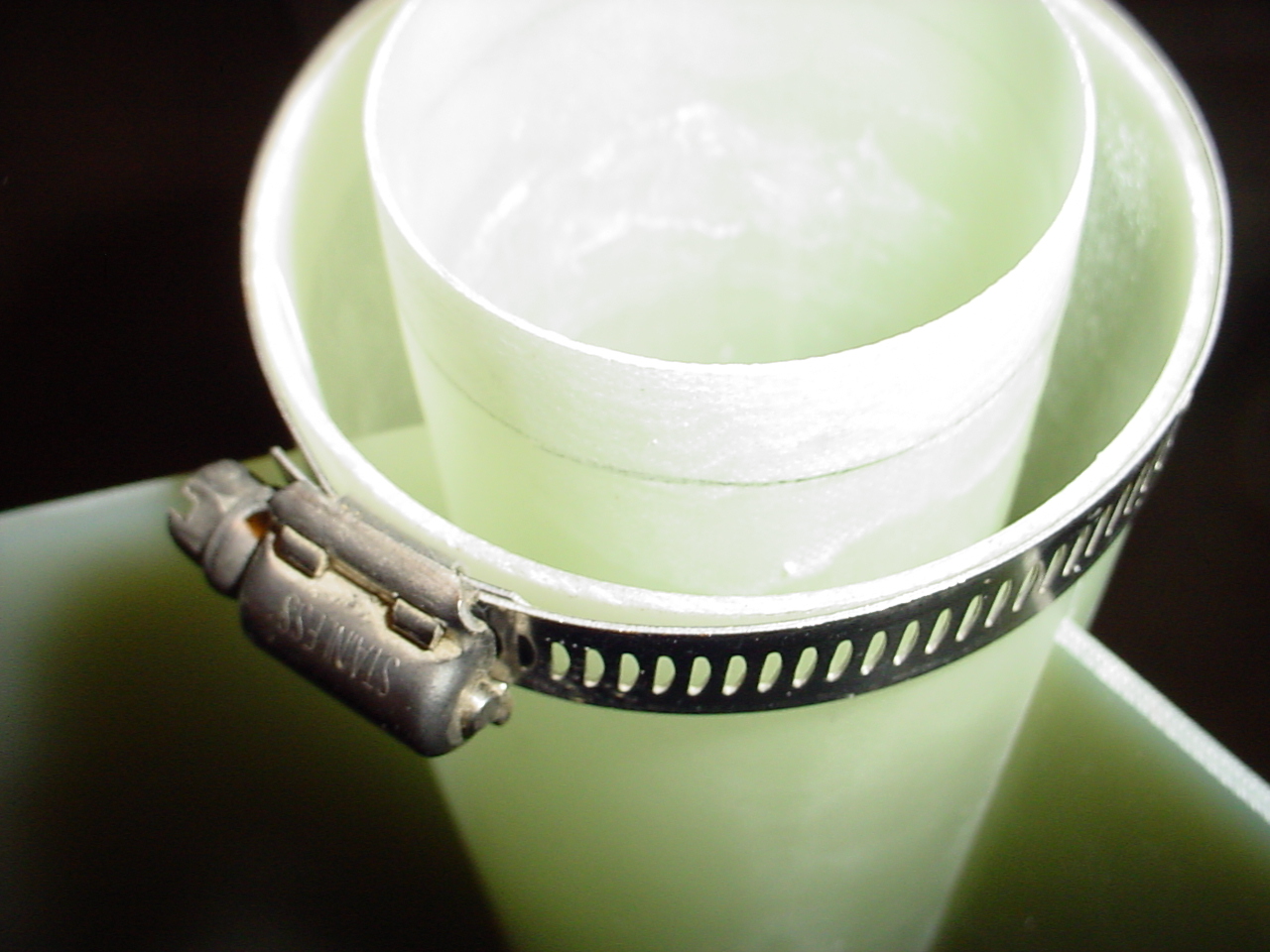

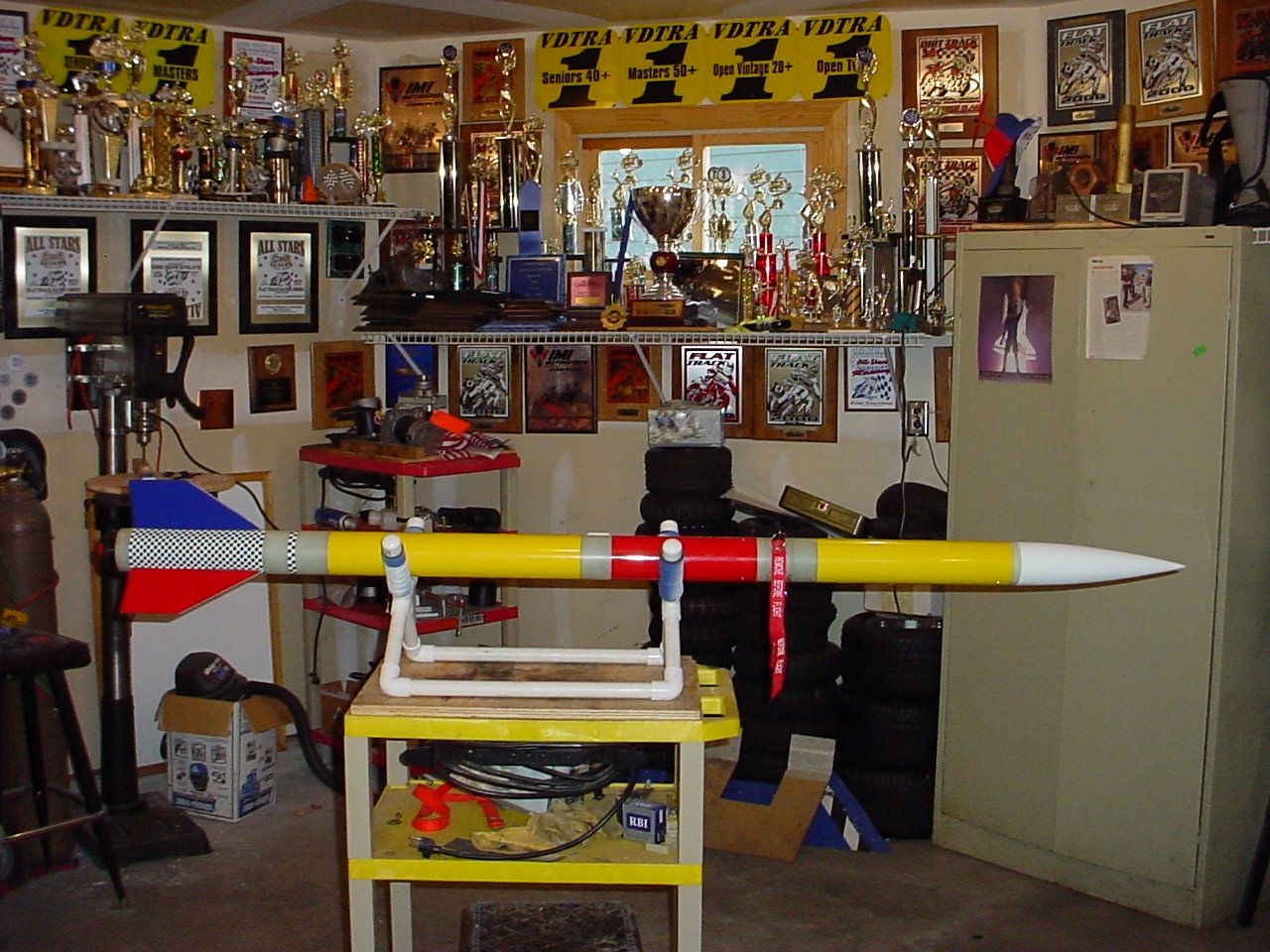

Slipstick II was modified for a zipperless design and the GPS was moved into the nose cone. The rocket became about 10" longer. A J350W was flown followed by a J440W.
